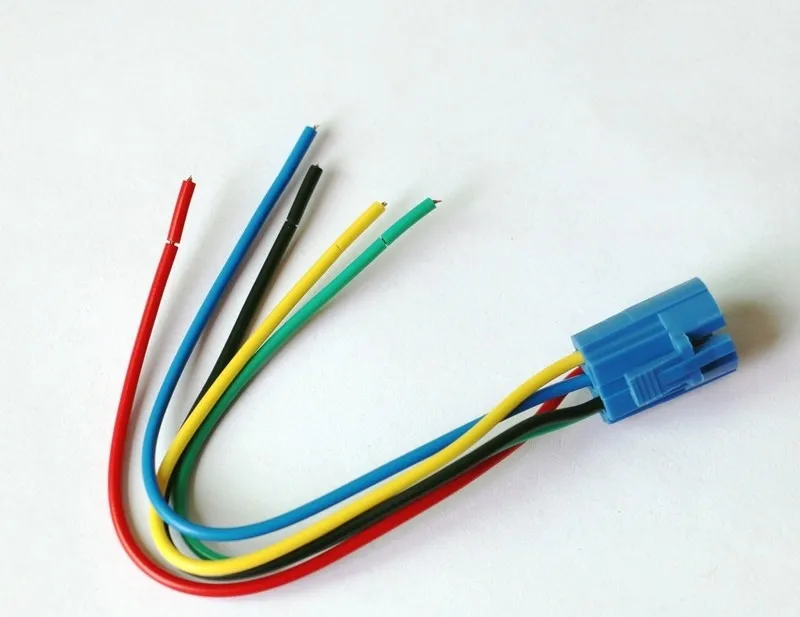

16mm push button connection

This 16mm push button connector is an electrical connector used to connect 16mm push buttons to wiring systems.

Connections:
Red: LED +
Black: LED -
Yellow: NC (Normally Closed)
Green: NO (Normally Open)
Blue: COM (Common)

Usually, the COM and NO are used to switch a wire. (Blue and Green)

The connector consists of two main parts: the socket (also known as a socket or connector) and the cable. The socket is the female part of the connector, while the cable is the male part that is inserted into the socket.

The 16mm push button connector has a diameter of 16 mm, which refers to the size of the connector. This size can vary depending on the specific application and requirements.

This connector allows for easy and quick installation, as the wires from the cable can simply be connected to the pins or terminals in the socket. This ensures a secure connection that is resistant to vibrations and other environmental factors.

The use of the 16mm push button connector offers a reliable solution for connecting push buttons and switches in various electrical systems. It facilitates installation, simplifies maintenance, and ensures safe operation of electrical circuits.
