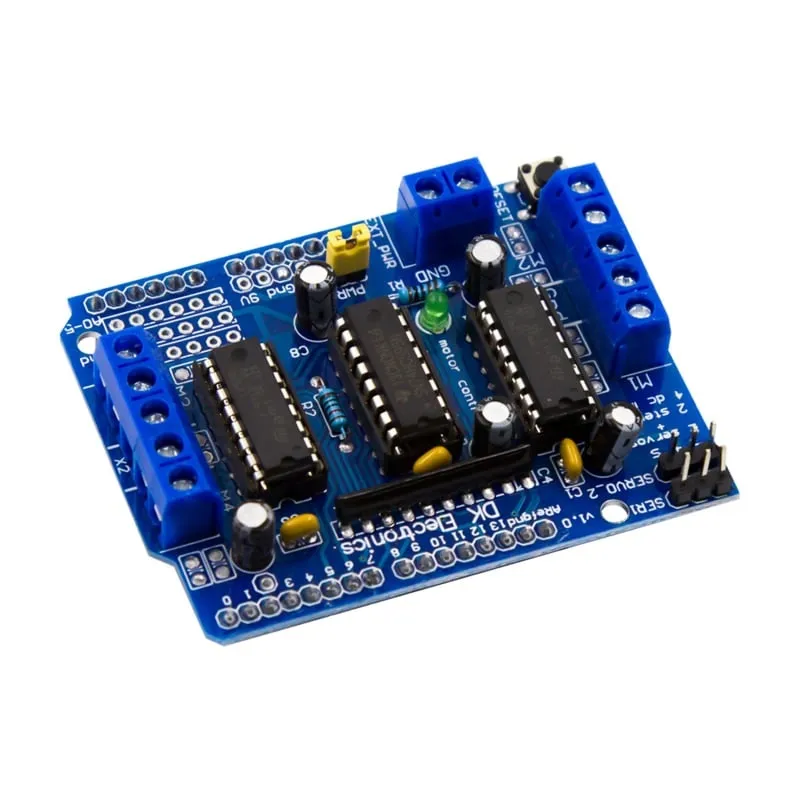

L293D Motor Driver shield for Arduino

Name: L293D Motor Driver shield for Arduino
Brand: OTRONIC
SKU: OT2040-C125
Price: 3.15 EUR
Availability: InStock
Rating: 4 (1 reviews)

Motor driver shield for Arduino that lets you control DC motors, stepper motors and servos.

4,0/5 (1 reviews) See all reviews

SKU: OT2040-C125 Article number: AA031 EAN: 4157493208348 Location: C12.05

€ 3,15 Incl. VAT (€ 2,60 Excl. VAT)

In stock (21)

30-day reflection period
1-year warranty
Ordered on weekdays before 2:00 PM, shipped today
Free returns

Alternative L9110S DC Stepper / Motor Driver Board H-Bridge € 2,40 View this alternative

L293D Motor Driver shield for Arduino

- Can control 4 DC motors or 2 stepper motors or 2 Servos.
- Up to 4 bidirectional DC motors with individual 8-bit speed control.
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
- 4 H-bridges: each bridge provides 0.6A (1.2A peak current) with thermal protection, can drive motors from 4.5V to 10V DC.
- Pull-down resistors keep motors disabled during startup.
- Reset button.
- 2 external terminal Power Interfaces, for separate logic/motor.
- Compatible with Arduino Uno, Mega, Diecimila & Duemilanove.

Dimensions
Length: 7cm
Width: 5.4cm
Height: 1.9cm

Motor control
8-bit speed
Thermal protection
7 x 5,4 x 1,9 cm

Why choose this product?

Many motor options – Drives 4 DC motors, 2 stepper motors or 2 servos.
Separate speed control – Up to 4 DC motors with individual 8-bit speed control.
Thermal protection – Protects each bridge against overheating.
Separate power supply – 2 external terminals for logic and motors.
Startup protection – Pull-down resistors keep the motors switched off.
Reset button included – Present on the module.
