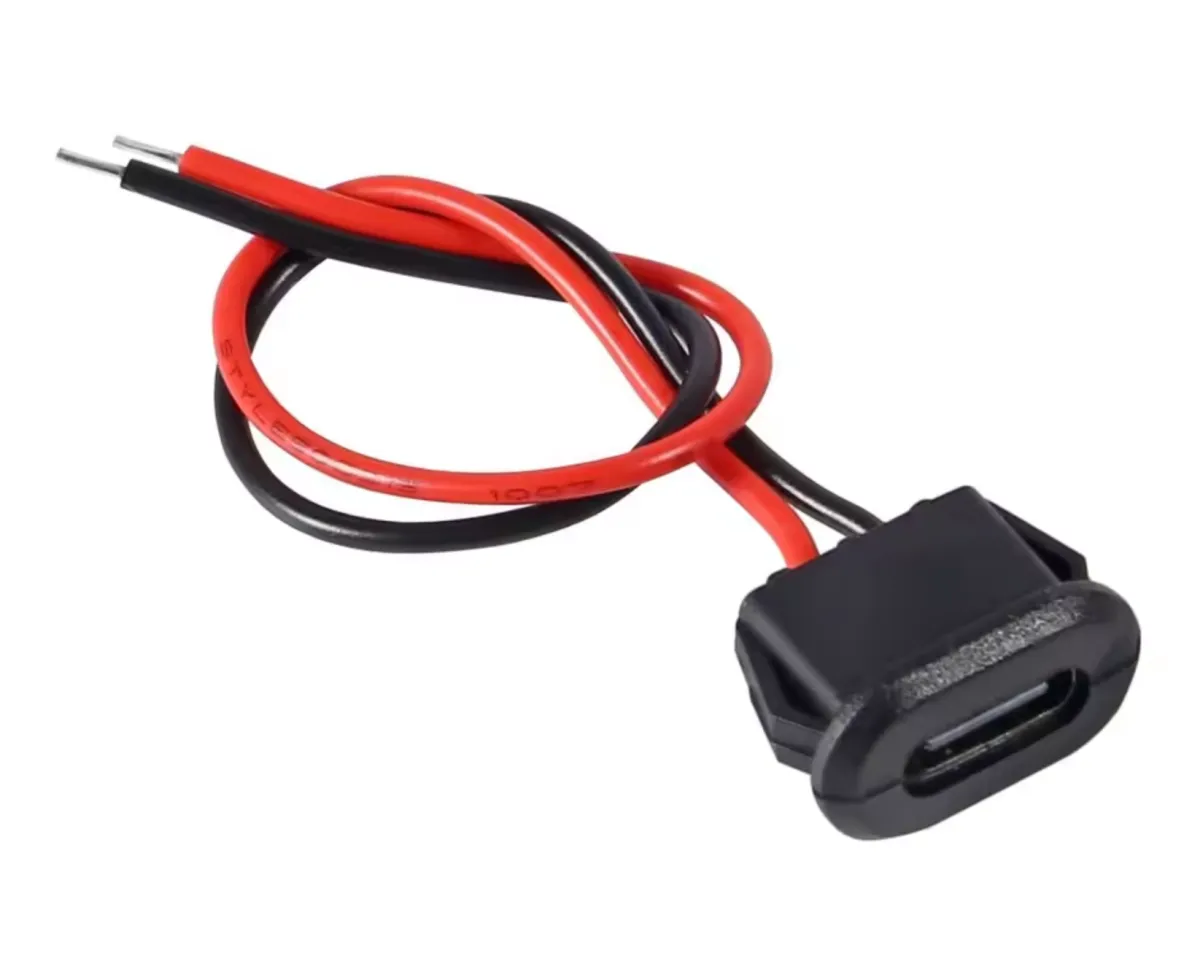

USB-C panel mount socket chassis part

USB-C panel mount socket chassis part

This USB-C panel mount socket is ideal for neatly and professionally installing a USB-C connection in your enclosure. The chassis part has a click system and is supplied with a 10 cm cable in red and black. Suitable for 5V power and charging, without data transfer.

Main features

• Suitable for 5V power and charging
• Click system for easy installation
• 10 cm cable in red (positive) and black (negative)
• Contacts made of copper alloy with gold plating for optimal conductivity
• Contact resistance less than 30 milliohm
• Insulation resistance greater than 1 megaohm
• Insertion and extraction force between 5 and 20N
• Durable: at least 1000 insertions without loss of quality
• Rated current: 3A / 5A
• Temperature range: -25°C to +85°C

Applications

This USB-C panel mount socket is suitable for various electronic applications, such as:

• PCB boards
• Toys and playthings
• Power banks and charging stations
• Clamped batteries
• Desk lamps
• Mobile devices and 3C digital products
• Electronic instruments and security equipment
• Industrial equipment
• Electric toothbrushes
