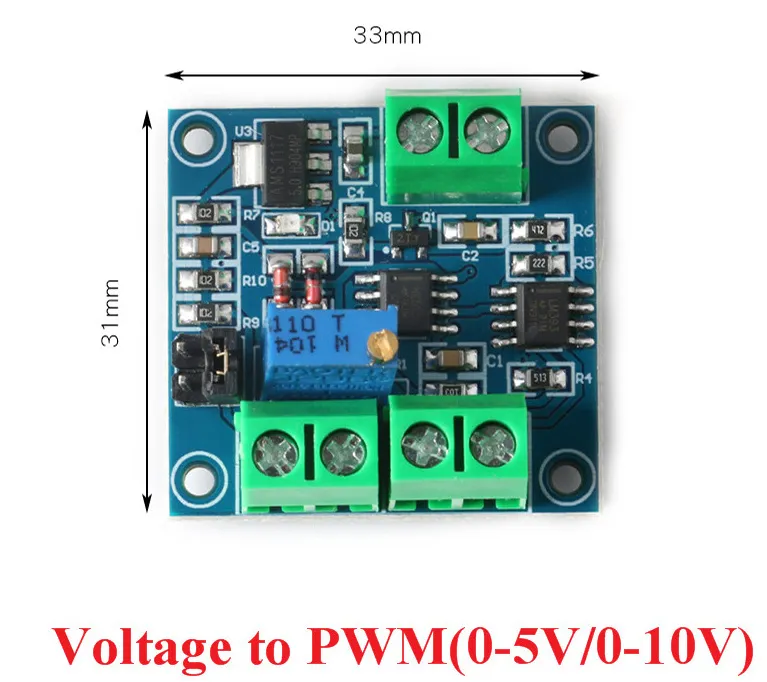

Модул преобразувател от напрежение към PWM 0-10V

/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : PWM to 0-10V Voltage Converter Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : PWM naar Voltage converter module 0-10V
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

// PWM to 0-10V Voltage Converter Module Demo
// Sweeps PWM duty cycle on pin 9 from 0% to 100% and back

const int pwmPin = 9;

void setup() {
  pinMode(pwmPin, OUTPUT);
  Serial.begin(115200);
  Serial.println(F("PWM to 0-10V Converter Demo Initialized"));
}

void loop() {
  // Ramp up
  for (int duty = 0; duty <= 255; duty += 5) {
    analogWrite(pwmPin, duty);
    Serial.print(F("PWM Duty: "));
    Serial.print(duty);
    Serial.print(F("/255 ("));
    Serial.print((duty * 100) / 255);
    Serial.println(F("%)"));
    delay(50);
  }

  delay(500);

  // Ramp down
  for (int duty = 255; duty >= 0; duty -= 5) {
    analogWrite(pwmPin, duty);
    Serial.print(F("PWM Duty: "));
    Serial.print(duty);
    Serial.print(F("/255 ("));
    Serial.print((duty * 100) / 255);
    Serial.println(F("%)"));
    delay(50);
  }

  delay(500);
}

/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : ESP32 0-10V PWM Voltage Converter Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : PWM naar Voltage converter module 0-10V
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

/*
 * PWM to 0-10V Voltage Converter Demo
 * Board: ESP32 DevKit V1
 *
 * Ramps output voltage from 0V to 10V and back down.
 */

const int PWM_PIN = 4; // GPIO 4 connected to PWM input

void setup() {
  Serial.begin(115200);
  pinMode(PWM_PIN, OUTPUT);
  Serial.println("PWM to 0-10V Converter Demo Started");
}

void loop() {
  // Ramp up from 0V to 10V
  for (int duty = 0; duty <= 255; duty += 5) {
    analogWrite(PWM_PIN, duty);
    float expectedVoltage = (duty / 255.0) * 10.0;

    Serial.print("Duty: ");
    Serial.print(duty);
    Serial.print("/255 | Output Voltage: ~");
    Serial.print(expectedVoltage, 2);
    Serial.println(" V");

    delay(50);
  }

  delay(500);

  // Ramp down from 10V to 0V
  for (int duty = 255; duty >= 0; duty -= 5) {
    analogWrite(PWM_PIN, duty);
    float expectedVoltage = (duty / 255.0) * 10.0;

    Serial.print("Duty: ");
    Serial.print(duty);
    Serial.print("/255 | Output Voltage: ~");
    Serial.print(expectedVoltage, 2);
    Serial.println(" V");

    delay(50);
  }

  delay(500);
}
