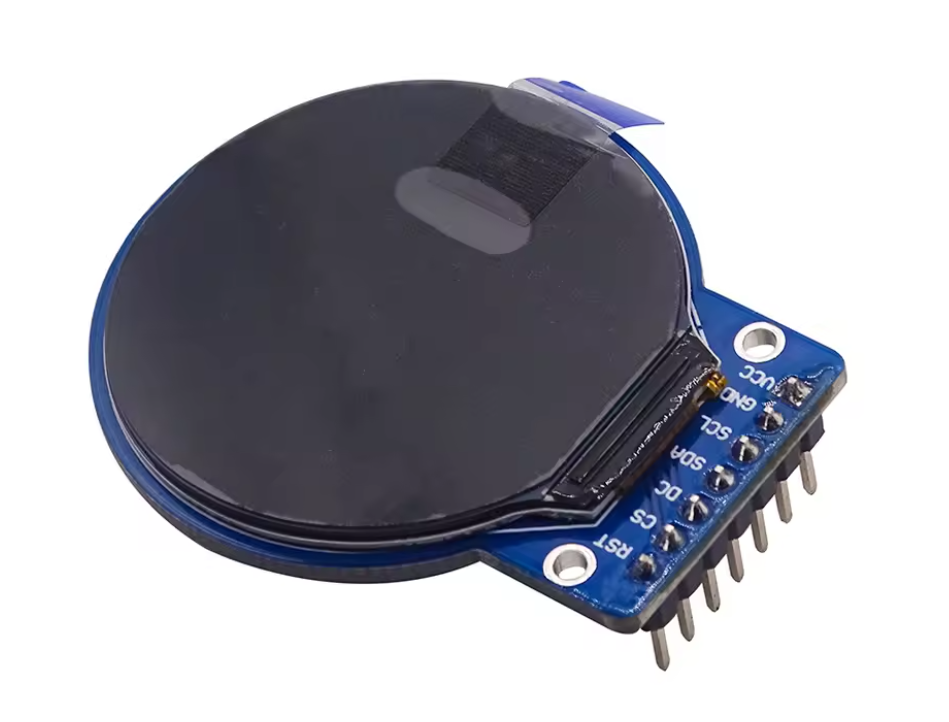

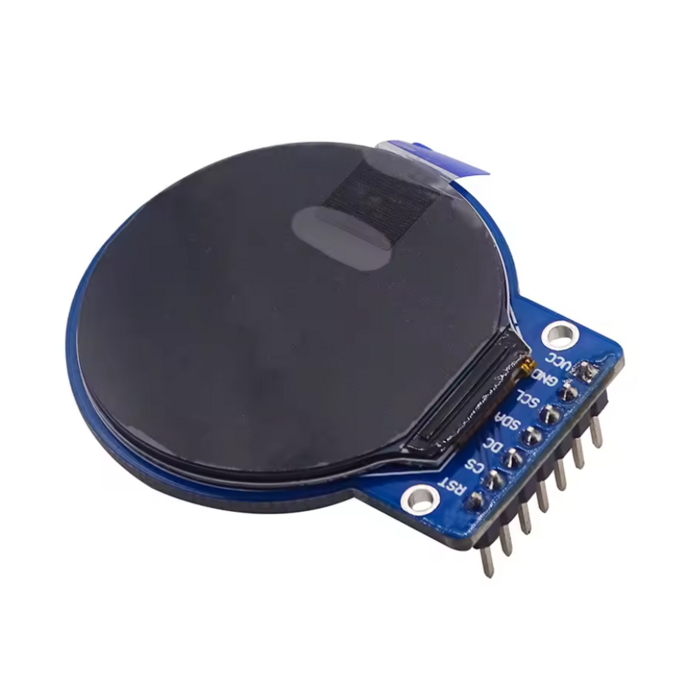

1.28" Round TFT LCD 240x240 (GC9A01, SPI) for Arduino - IPS Color Screen (OT8724)

1.28" round TFT LCD 240x240 (GC9A01, SPI) for Arduino

This 1.28 inch round TFT LCD display is ideal for Arduino projects requiring a bright and sharp screen. With a resolution of 240x240 pixels and an IPS color display, it offers a fully visible and vivid view from any angle.

Main Features

• Screen size: 1.28 inch round
• Resolution: 240x240 pixels
• Display type: IPS color screen for wide viewing angles
• Driver chip: GC9A01
• Interface: 4-Pin SPI
• Operating voltage: 2.8V to 3.3V
• Pin pitch: 2.54 mm, 8 pins
• Operating temperature: -20°C to 70°C
• Operating humidity: 5% to 95% RH

Technical Specifications

• Display area: 32.4 mm diameter
• Panel dimensions: 35.6 × 38.1 × 1.5 mm
• PCB dimensions: 44 × 36 × 5 mm
• Fully visible angle for optimal readability

This screen is suitable for various applications requiring a compact, high-quality color display. Thanks to the SPI interface, it is easy to connect to Arduino and similar microcontrollers.
