2.4Ghz WiFi Antenna with SMA to uFL Ipex connector (OT5861)
Show all:
Communication,RF
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description

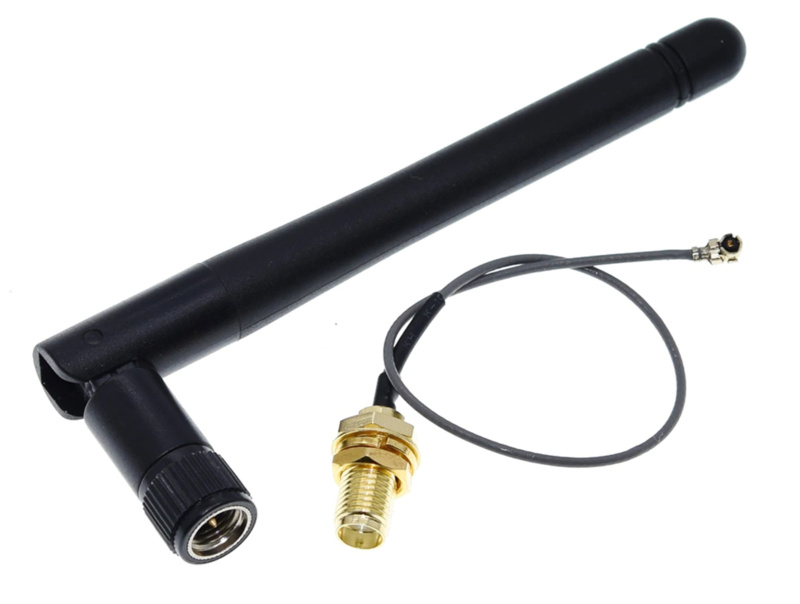

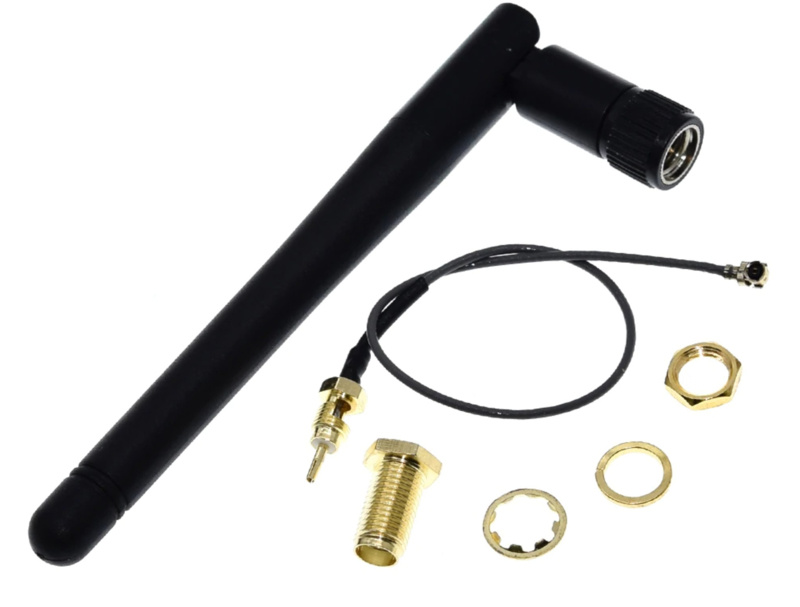

This antenna provides a significantly better range of your 2.4Ghz device. Antenna is suitable for ESP32 and ESP8266 boards that have a uFL connection. The supplied cable can be easily installed with the thread and the nut.
Connector type: uFL (I-PEX) Gain: >3dBi Impedance: 50 Ohm Frequency range: 2400Mhz - 2500Mhz Maximum input power: 50W
Length of the antenna: 10.8 cm and from the bend 8.7 cm Length of the cable is approx. 15 cm Diameter for the thread (hole size) is 6 mm
Dimensions Length: 10.8 cm Width: 0.9 cm Height: 0.9 cm
Connector type: uFL (I-PEX) Gain: >3dBi Impedance: 50 Ohm Frequency range: 2400Mhz - 2500Mhz Maximum input power: 50W
Length of the antenna: 10.8 cm and from the bend 8.7 cm Length of the cable is approx. 15 cm Diameter for the thread (hole size) is 6 mm
Dimensions Length: 10.8 cm Width: 0.9 cm Height: 0.9 cm
