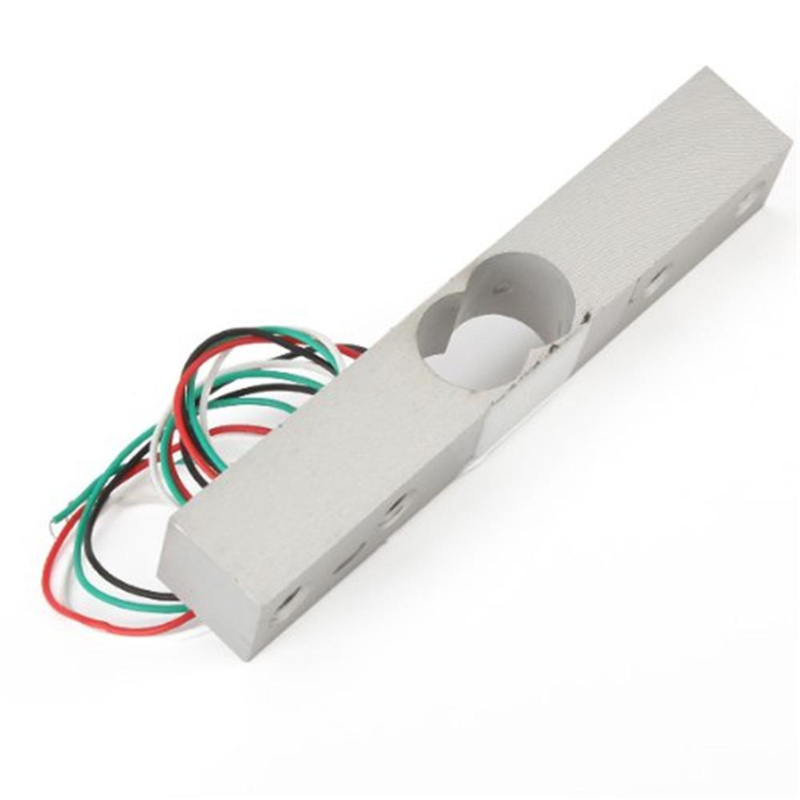

Otronic 3 kg Load Cell YZC-131 with wiring - for Digital Weighing

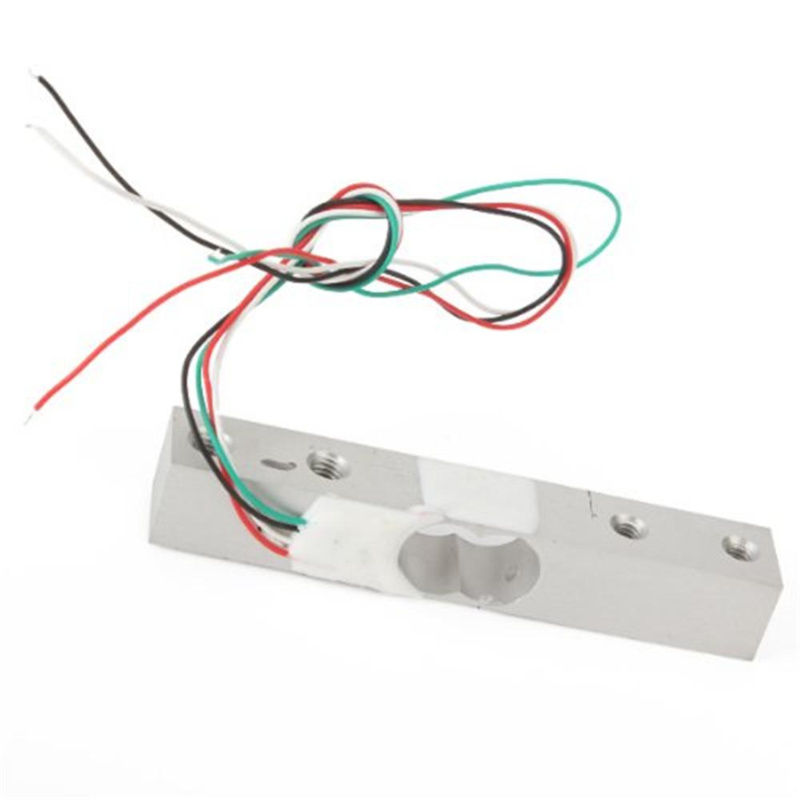

Otronic 3 kg Load Cell YZC-131 with wiring - for Digital Weighing
Otronic 3 kg Load Cell YZC-131 with wiring - for Digital Weighing
Otronic 3 kg Load Cell YZC-131 with wiring - for Digital Weighing
Otronic 3 kg Load Cell YZC-131 with wiring - for Digital WeighingOtronic 3 kg Load Cell YZC-131 with wiring - for Digital WeighingOtronic 3 kg Load Cell YZC-131 with wiring - for Digital WeighingOtronic 3 kg Load Cell YZC-131 with wiring - for Digital Weighing
€6,00
Required fields:
    A load cell sensor or Load Cell sensor suitable for measuring up to 3 kg and is used in digital kitchen scales, among other things. To read the sensorRead more

    Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.

    REQUEST QUOTE
    Ship to all EU countries
    30 days cooling-off period
    1 jaar garantie

    Description

    load cell sensor or Load Cell sensor suitable for measuring up to 3 kg and is used in digital kitchen scales, among other things. To read the sensor, you need an HX-711 Load Cell amplifier. You cannot connect the sensor directly to an Arduino.

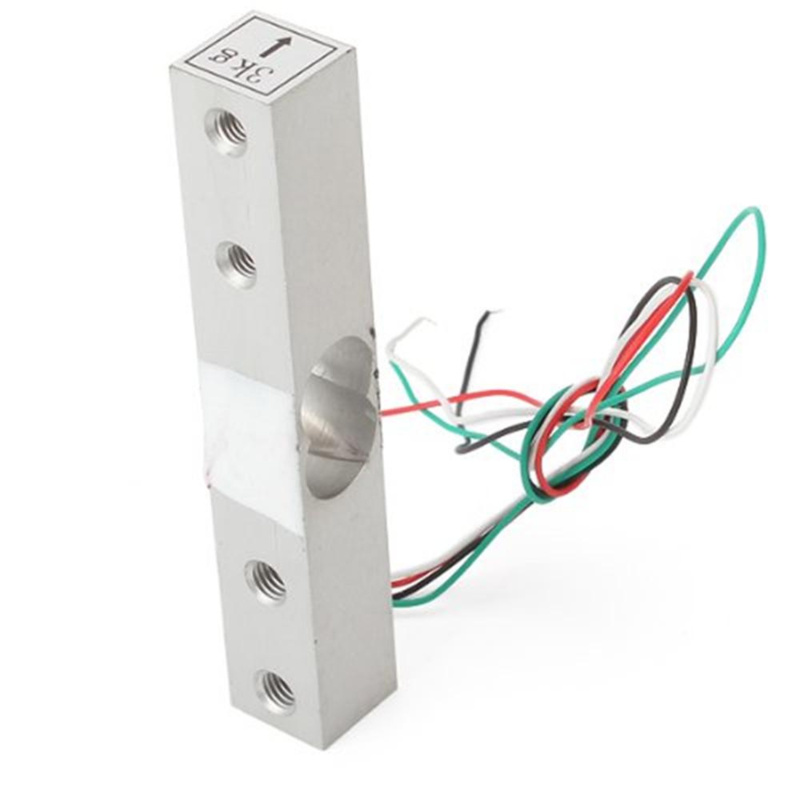

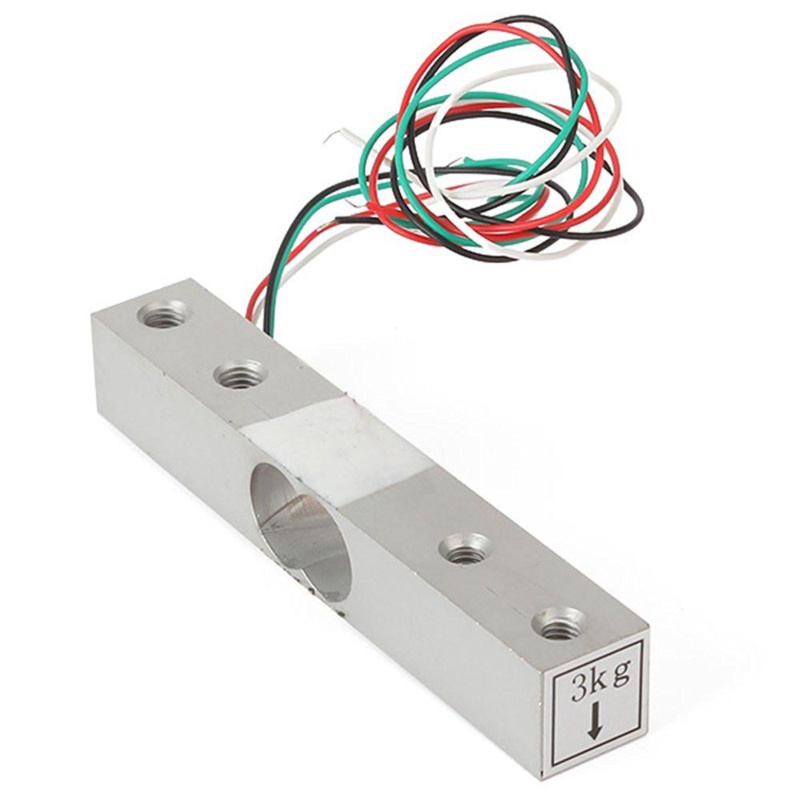

    There are 4 tapped holes in the Load Cell so that you can mount it securely with M4 bolts. When mounting, make sure that it is mounted correctly for reliable measurement: with the green arrow pointing to the ground
    Technical specifications

    Measuring range: 0 to 3 kg
    Dimensions: 75 x 12.70 x 12.70 mm
    Weight: 30 grams
    Number of wires: 4

    Connection wires

    Red: + Excitation
    Black: - Excitation
    Green: + Signal
    White: - Signal_x005F_x000D_
