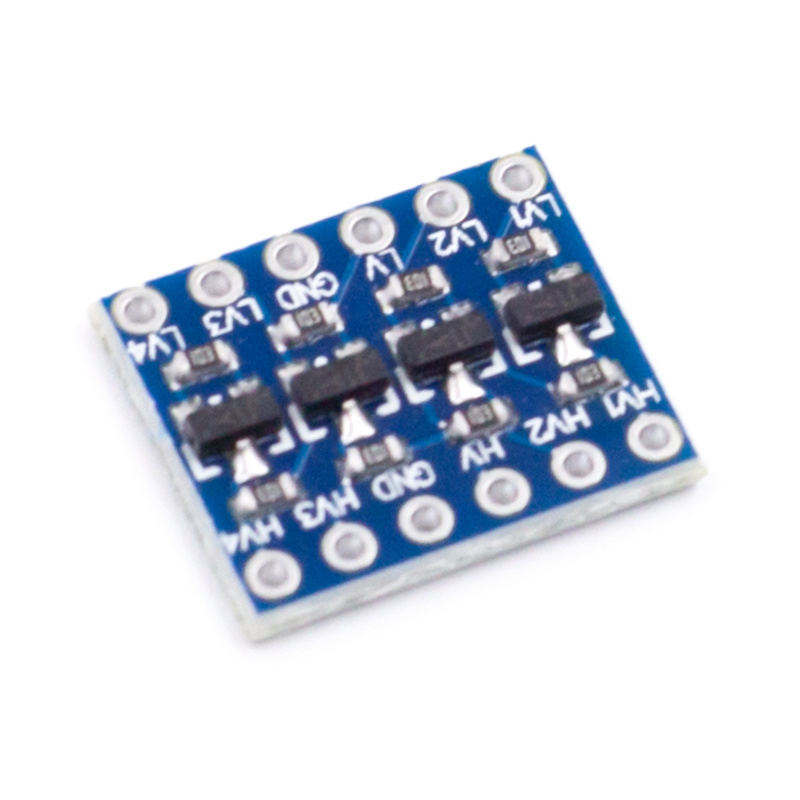

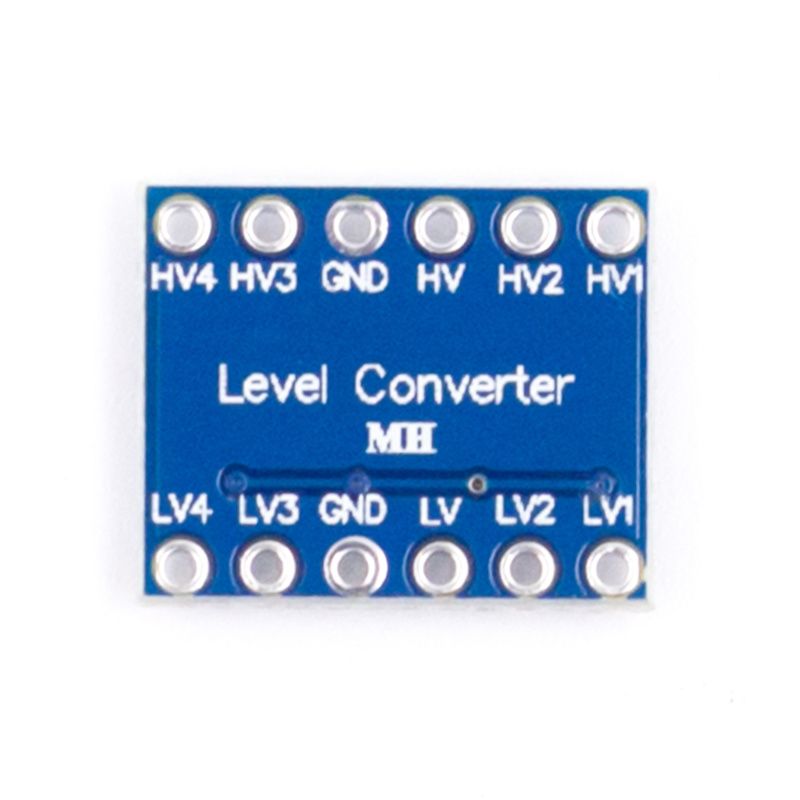

4-channel logic voltage level converter (OT3107)
Show all:
Voltage Regulators
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description

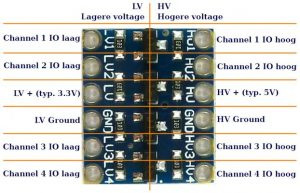

This module can do voltage conversion for 4 channels in both directions between 1.8V, 2.8V, 3.3V and 5V digital signals, such as serial data, I2C and ISP (<2Mhz). For each channel an N-channel MOSFET is used in the following arrangement:
Anyone who connects their own circuit instead of a microcontroller should remember that at the input a connection to ground is needed between the pulses to represent a logical 0, and to get the output LOW. If nothing is connected to the pins, everything is in the HIGH state via the 10K pullup resistors.

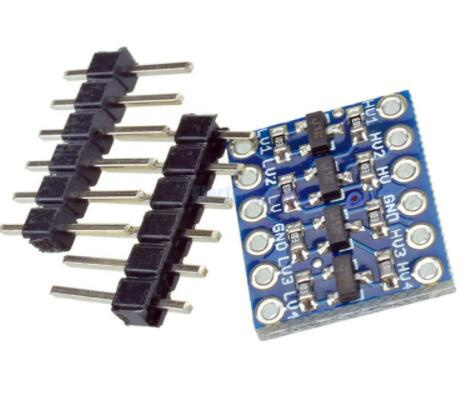

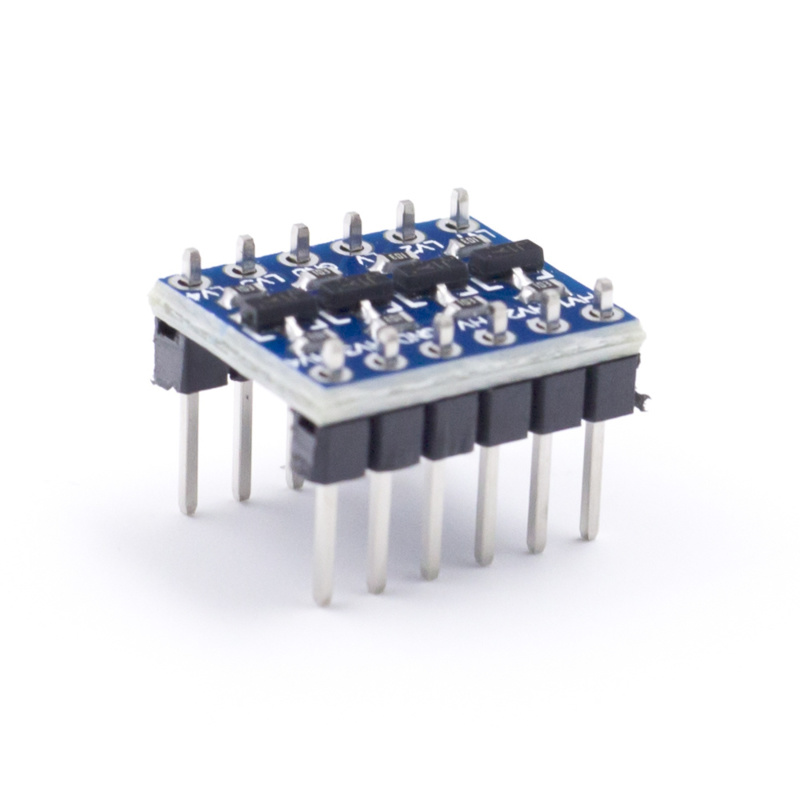

Comes with separate headers
DimensionsLength: 1.5cmWidth: 1.2cmHeight: 0.2cm
Anyone who connects their own circuit instead of a microcontroller should remember that at the input a connection to ground is needed between the pulses to represent a logical 0, and to get the output LOW. If nothing is connected to the pins, everything is in the HIGH state via the 10K pullup resistors.
Comes with separate headers
DimensionsLength: 1.5cmWidth: 1.2cmHeight: 0.2cm
