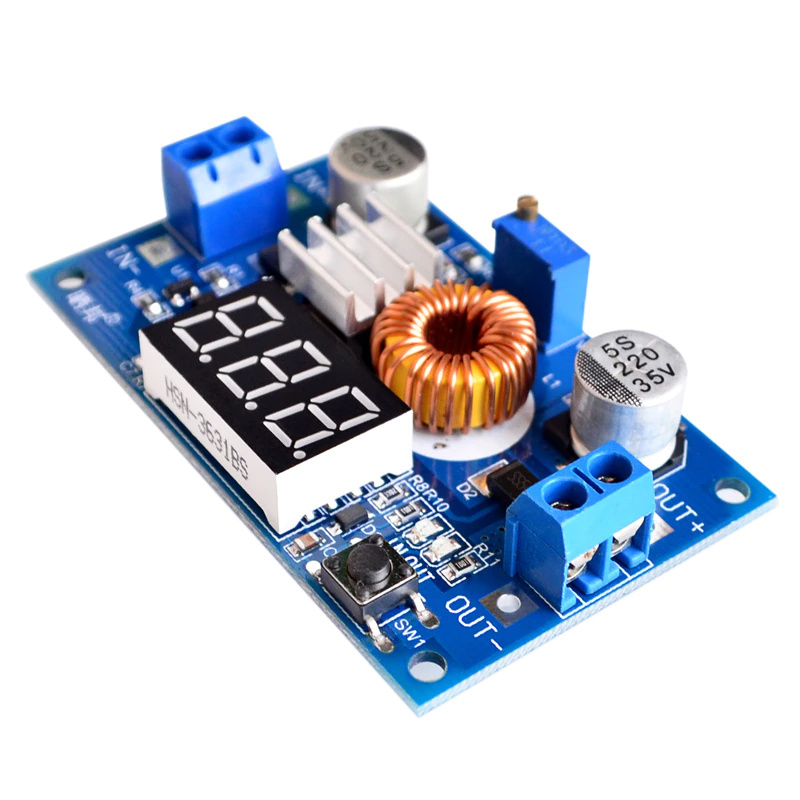

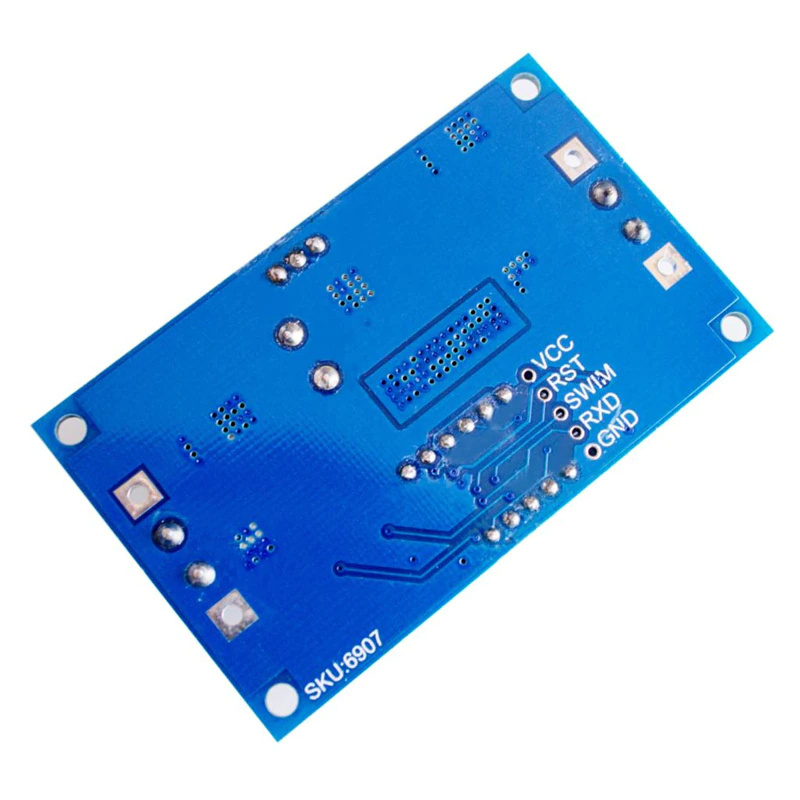

5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module with Display Voltmeter (OT3535)
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
4-38VDC input voltage1.25-36VDC output voltage, adjustable0-5A output power, with output short circuit protection.Maximum output 75W with thermal protection
Including heat sink which is supplied unmounted. Can be attached with attached 3M strip.
The display can show input and output current.
The left button turns the display on or off and the right button allows you to choose whether you want to see the input voltage or output voltage.
The trimpot can be used to set the desired output voltage.
NOTE: The trimpot may have to be turned counterclockwise up to 20 full turns the first time before the voltage drops.
Including heat sink which is supplied unmounted. Can be attached with attached 3M strip.
The display can show input and output current.
The left button turns the display on or off and the right button allows you to choose whether you want to see the input voltage or output voltage.
The trimpot can be used to set the desired output voltage.
NOTE: The trimpot may have to be turned counterclockwise up to 20 full turns the first time before the voltage drops.
Reviews
Add your review
9.5/10
luc laureys
getest en ok bevonden
Posted on 13/10/2025Emmanuel FORÉ
Parfait. Conforme à l'annonce, Prix compétitif.
Posted on 03/10/2025dswm
Werkt prima, het klopt dat de trimpot eerst 20 slagen nodig heeft voordat hij zijn werk doet. Heb zelf extra koeling aangebracht.
Posted on 10/07/2025Philippe GUYONNET
Works all right. Very compact and efficient.
