Name: Active Buzzer Module
Brand: OTRONIC
SKU: OT2001-D123
Price: 1.40 EUR
Availability: InStock

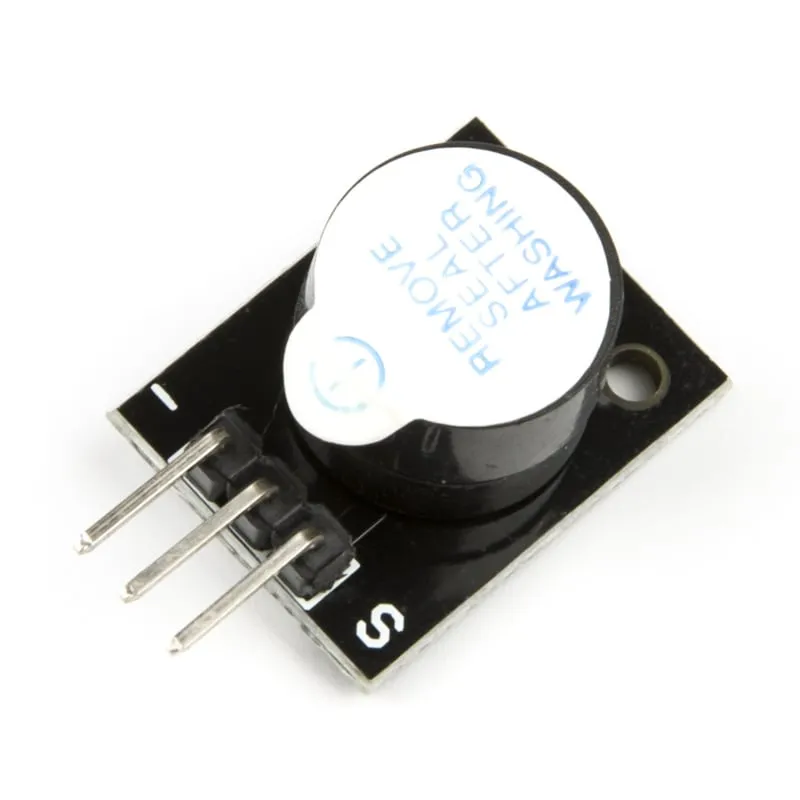

Active Buzzer Module

Active buzzer module for your Arduino project.

SKU: OT2001-D123 Article number: AB011 EAN: 8598008139881 Location: D12.03

€ 1,40 Incl. VAT (€ 1,16 Excl. VAT)

In stock (82)

30-day reflection period

1-year warranty

Ordered on weekdays before 2:00 PM, shipped today

Free returns

Wiring diagram and code example

How to connect the Active Buzzer Module to an Arduino UNO or ESP32, with an example sketch you can upload straight away.

Arduino UNO ESP32 DevKit V1

Active Buzzer Beep Demo

This project demonstrates how to control an active buzzer module with an Arduino Uno. The active buzzer generates a fixed-frequency tone whenever the signal pin is driven HIGH. The code repeatedly turns the buzzer on and off to create a simple beeping alert pattern.

Wiring diagram: Active Buzzer Module on an Arduino UNO — Wiring diagram · Click to enlarge

Connection table: Active Buzzer Module on an Arduino UNO — Connection table · Click to enlarge

Active_Buzzer_Beep_Demo.ino · compiled and verified

/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : Active Buzzer Beep Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : Active Buzzer Module
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

const int BUZZER_PIN = 8;

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);
  Serial.begin(115200);
  Serial.println(F("Active Buzzer Demo Ready"));
}

void loop() {
  // Turn the buzzer on
  Serial.println(F("Buzzer ON"));
  digitalWrite(BUZZER_PIN, HIGH);
  delay(200);

  // Turn the buzzer off
  Serial.println(F("Buzzer OFF"));
  digitalWrite(BUZZER_PIN, LOW);
  delay(800);
}

Show all codeShow less code

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Active Buzzer Beep Demo with ESP32

This project demonstrates how to control an active buzzer module using an ESP32. The sketch turns the buzzer on and off in a repeating beep pattern while outputting the current state to the Serial Monitor.

Wiring diagram: Active Buzzer Module on an ESP32 DevKit V1 — Wiring diagram · Click to enlarge

Connection table: Active Buzzer Module on an ESP32 DevKit V1 — Connection table · Click to enlarge

Active_Buzzer_Beep_Demo_with_ESP32.ino · compiled and verified

/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : Active Buzzer Beep Demo with ESP32
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : Active Buzzer Module
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

// Active Buzzer Demo for ESP32 DEVKIT V1
// Connect the buzzer signal pin to GPIO 4 (D4 on silkscreen)

const int BUZZER_PIN = 4;

void setup() {
  Serial.begin(115200);
  pinMode(BUZZER_PIN, OUTPUT);
  digitalWrite(BUZZER_PIN, LOW);
  Serial.println("Active Buzzer Demo Ready");
}

void loop() {
  // Turn the buzzer ON
  Serial.println("Buzzer ON");
  digitalWrite(BUZZER_PIN, HIGH);
  delay(200);

  // Turn the buzzer OFF
  Serial.println("Buzzer OFF");
  digitalWrite(BUZZER_PIN, LOW);
  delay(200);

  // Second beep
  Serial.println("Buzzer ON");
  digitalWrite(BUZZER_PIN, HIGH);
  delay(200);

  // Pause between beep sequences
  Serial.println("Buzzer OFF (Pause)");
  digitalWrite(BUZZER_PIN, LOW);
  delay(1000);
}

Show all codeShow less code

Wiring diagram and example code generated by Codey.online — https://www.codey.online
