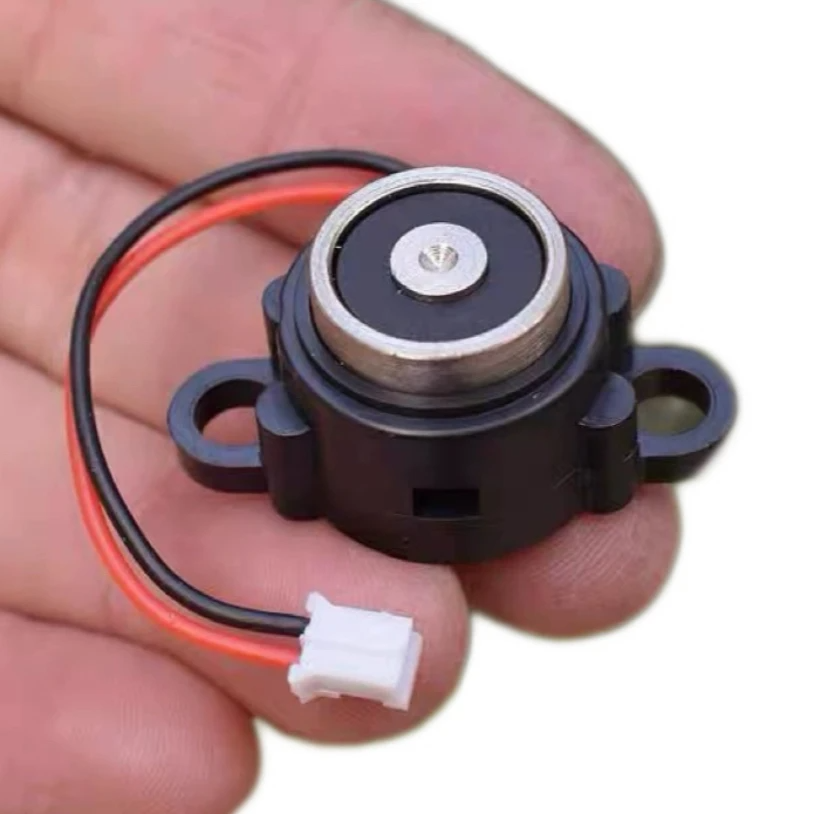

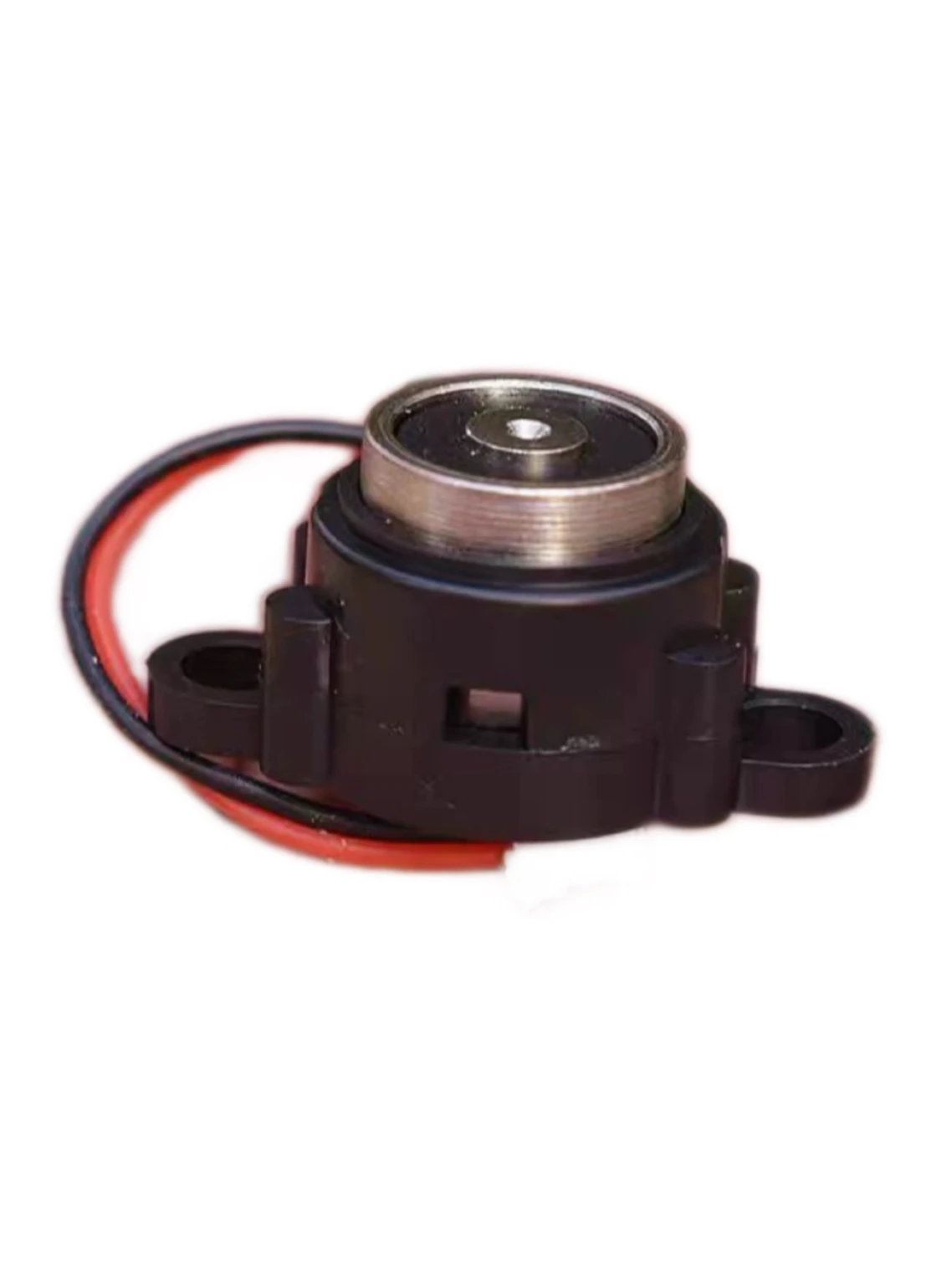

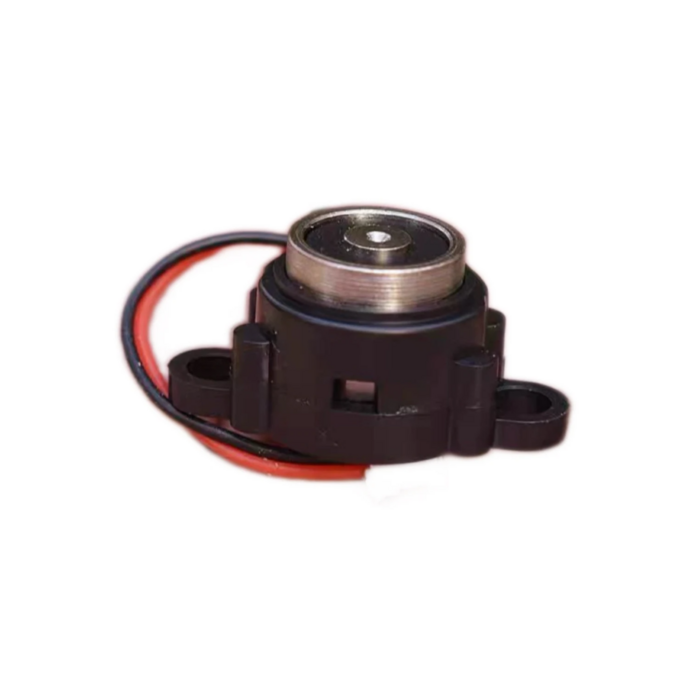

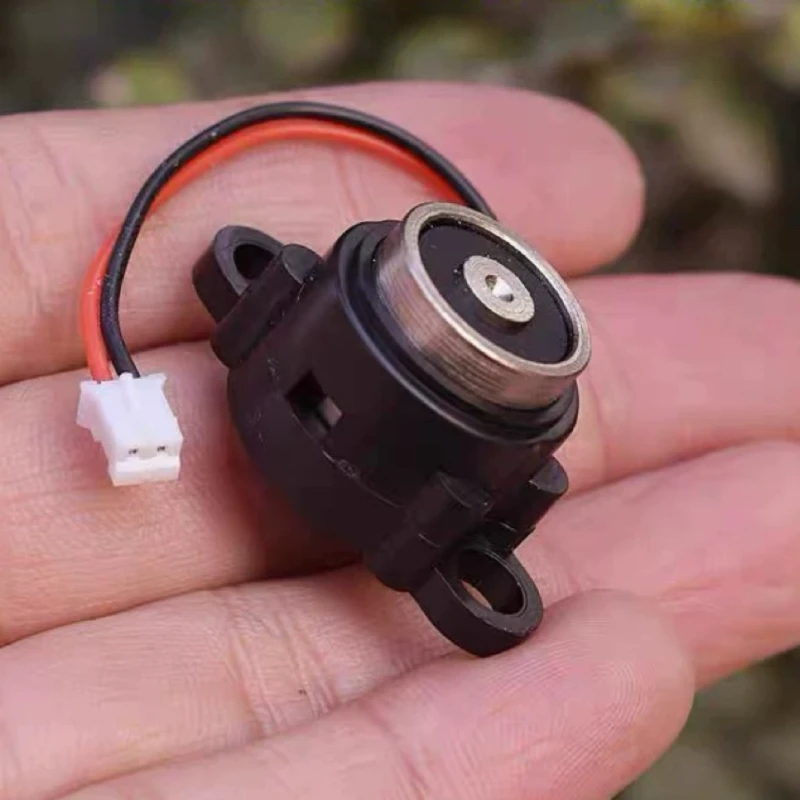

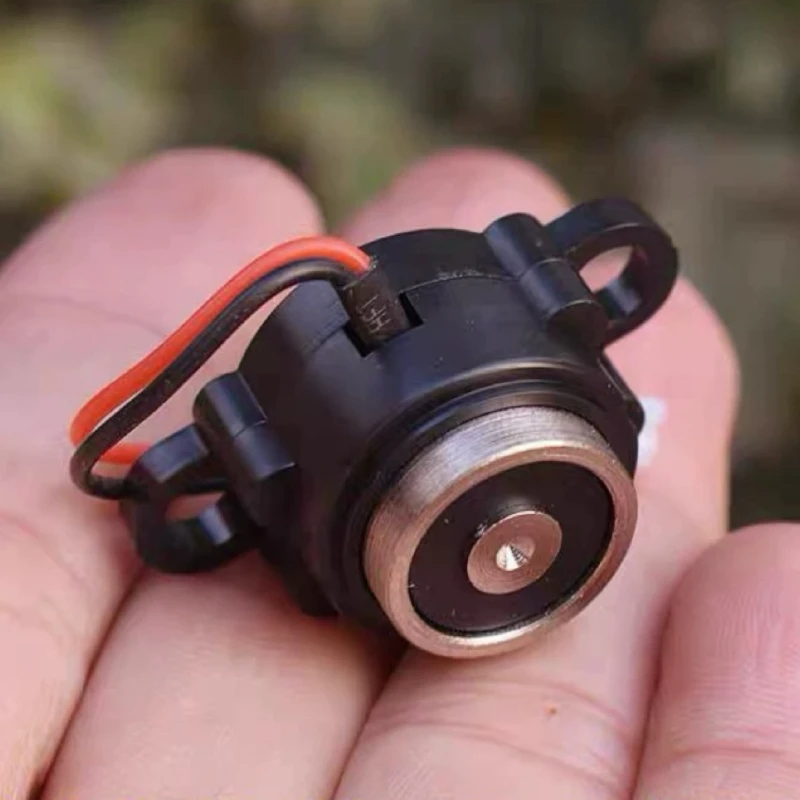

Counter-electromagnet without power | Ideal for temporary disconnection (OT8110)

Counter-electromagnet Magnetic without power

This counter-electromagnet is magnetic without power and loses its magnetic force as soon as 5V to 6V is applied. This makes it ideal for applications where a magnet only needs to be temporarily deactivated.

Main features

• Diameter: 16 mm
• Current consumption: 0.23A at 5VDC / 0.27A at 6VDC
• Maximum pulling force: 300 grams
• Weight: 21 grams
• Wire length: approximately 7 cm
• Comes with a plastic holder with screw holes for easy mounting

Applications

This counter-electromagnet is very suitable for use in escape rooms and other situations where hatches or doors need to fall open at a certain moment, without the magnet needing to be continuously powered. This saves energy and prevents overheating.
