SKU: OT4872 Article number: GD038 EAN: 8720618827845

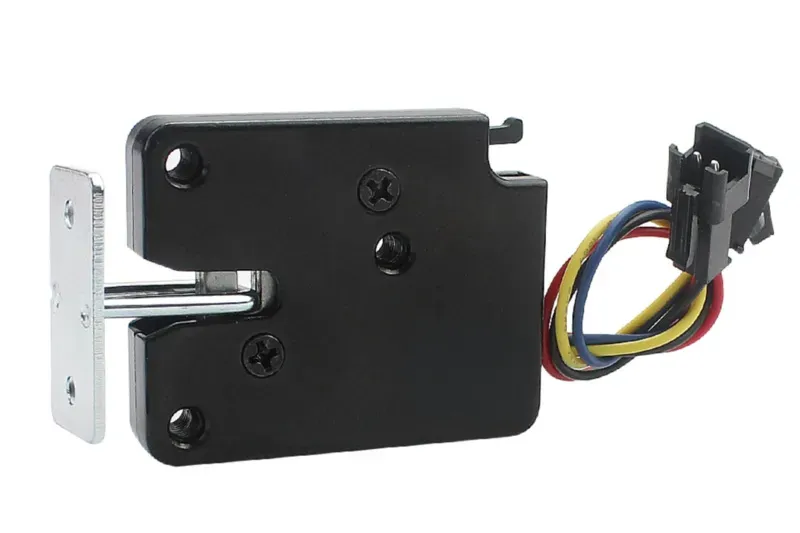

This electronic lock can be used in lockers, drawers, small cabinets, etc. The locks are water and moisture resistant and can therefore be used in damp areas.
Connecting is very simple. Simply apply 5V to the red and black wire and the lock will pop open. Due to the spring force in the lock, a door will spring open a small amount. Ideal for lockers.
The lock can be controlled with, for example, an Arduino, ESP32 or ESP8266. Do use an external power supply to switch the lock with a relay. The switching current is 1.2A, which cannot be driven directly from your Arduino.
The blue and yellow wire make contact / are connected when the lock is closed. This allows you to monitor with your microcontroller whether the lock is open or closed.
Wiring diagram and example code >>>
Maximum force on the hook and mechanism: 50KG
Suitable connectors are JST-SM
Can also be opened manually without power. The lock must then be accessible by hand.
Material: zinc alloy
With feedback signal via the blue and yellow wire
Color: Black
Cable length: 10cm
Voltage 5v 1.2 amp via the red and black wire
Maximum switching time is 2 seconds. This means that the pulse to open the lock should preferably not last longer than 2 seconds.
Keywords: solenoid lock, electronic lock, locker, locker lock
Dimensions
Length: 5cm
Width: 1cm
Height: 4cm
