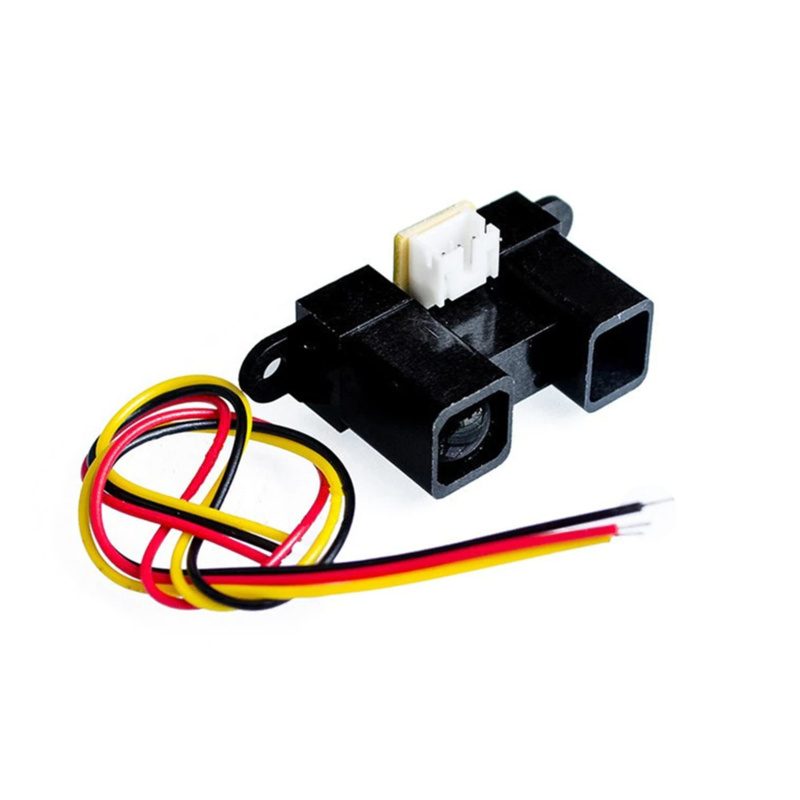

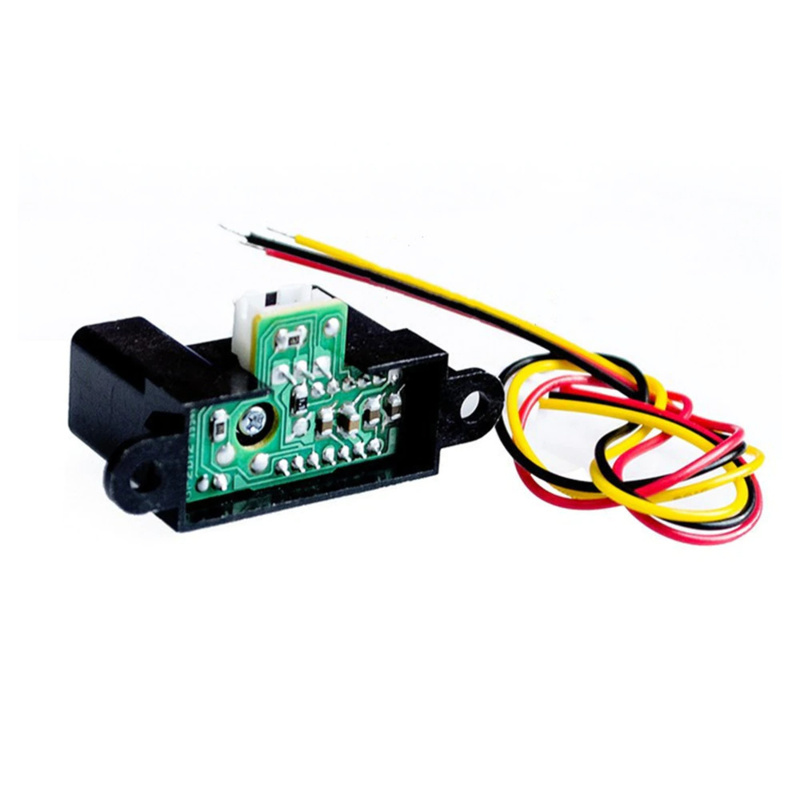

Infrared distance sensor 20-150cm GP2Y0A02 (OT3494)
Show all:
Sensors,Distance Sensors
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
This popular GP2Y0A02 sensor from Sharp produces an analog output ranging from 2.5V at 20cm to 0.4V at 150cm.
Based on Sharp's "typical values", the formula to translate SensorValue into Distance is (the formula is only valid for a SensorValue between 80 and 490):
Distance (cm) = 9462 / (SensorValue - 16.92)
Note: The output of this sensor varies from unit to unit and is based on the target characteristics (reflectance, size, direction of motion, object alignment). If you find that you are not getting good results with the standard formula, you can modify it as you wish to achieve the desired result.
Measuring distance range: 20 to 150 cm Signal output type: analog voltage signal; Package size: 29.5 × 13 × 21.6 mm Current consumption: nominal 33 mA Power supply voltage: 4.5 to 5.5 V
Based on Sharp's "typical values", the formula to translate SensorValue into Distance is (the formula is only valid for a SensorValue between 80 and 490):
Distance (cm) = 9462 / (SensorValue - 16.92)
Note: The output of this sensor varies from unit to unit and is based on the target characteristics (reflectance, size, direction of motion, object alignment). If you find that you are not getting good results with the standard formula, you can modify it as you wish to achieve the desired result.
Measuring distance range: 20 to 150 cm Signal output type: analog voltage signal; Package size: 29.5 × 13 × 21.6 mm Current consumption: nominal 33 mA Power supply voltage: 4.5 to 5.5 V
