4-channel optocoupler isolation module (OT3262)

Show all: Relay

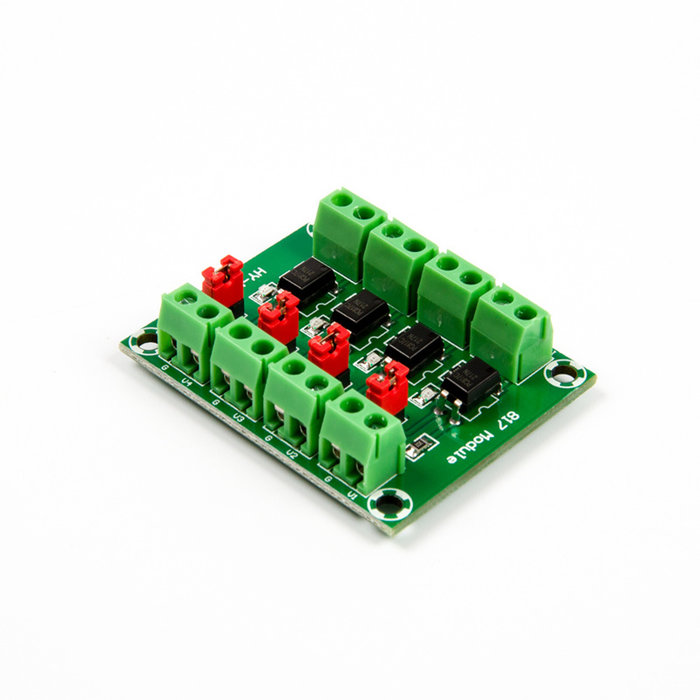

Otronic 4-channel optocoupler isolation module

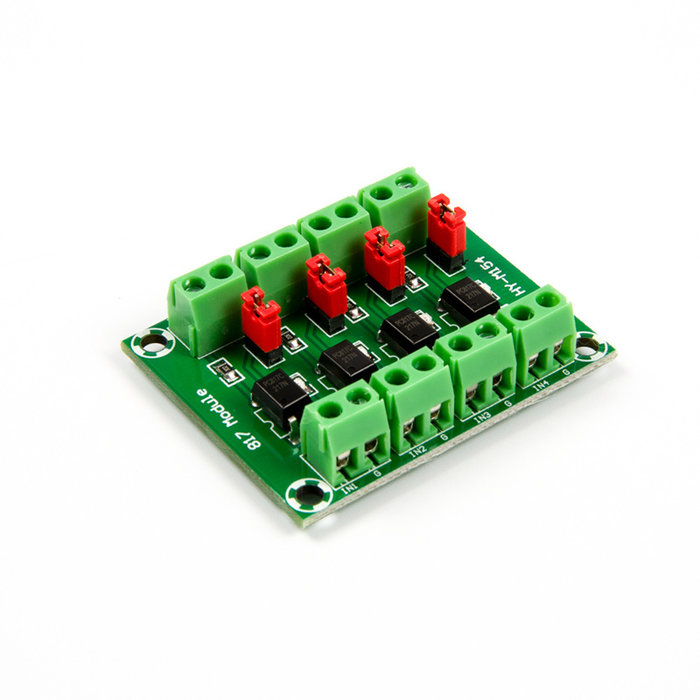

Otronic 4-channel optocoupler isolation module
Otronic 4-channel optocoupler isolation module
Otronic 4-channel optocoupler isolation moduleOtronic 4-channel optocoupler isolation moduleOtronic 4-channel optocoupler isolation module
€2,10
In stock (15 stuks)
Available for immediate delivery from stock
Required fields:
    -+
    Shipped today? You have got:
    : :
    This Optocoupler board is equipped with 4 PC817X optocouplers. For an explanation of how optocouplers work exactly, we recommend that you watch the video with this product.Read more

    Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.

    REQUEST QUOTE
    Ship to all EU countries
    Ordered on working days before 3:00 PM = shipped the same day.
    30 days cooling-off period
    1 jaar garantie

    Description

    This Optocoupler board is equipped with 4 PC817X optocouplers. For an explanation of how optocouplers work exactly, we recommend that you watch the video with this product (English). The jumper connects the minus/GND planes to each other for a Common Ground. To obtain full isolation, the jumper must be removed.

    width=227



    Input voltage (IN1-IN4): 3.6-24V Output voltage (V1-V4): 3.6-30V Maximum power per output: 150mW Maximum switching frequency: 4kHz Download the datasheet of the PC817X optocoupler here Dimensions Length: 4.71cm Width: 3.8cm Height: 1.2cm
    Max output current: 10mA
