Description

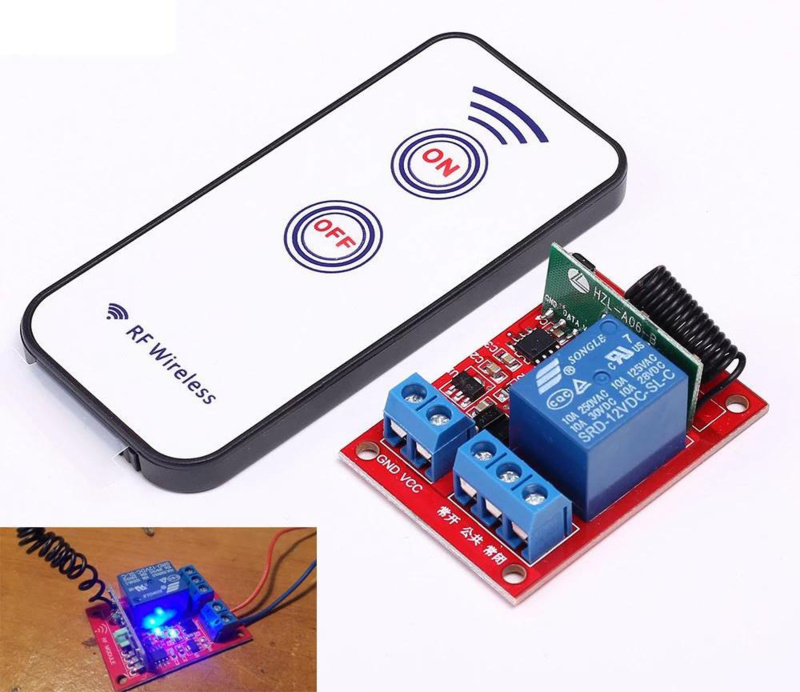

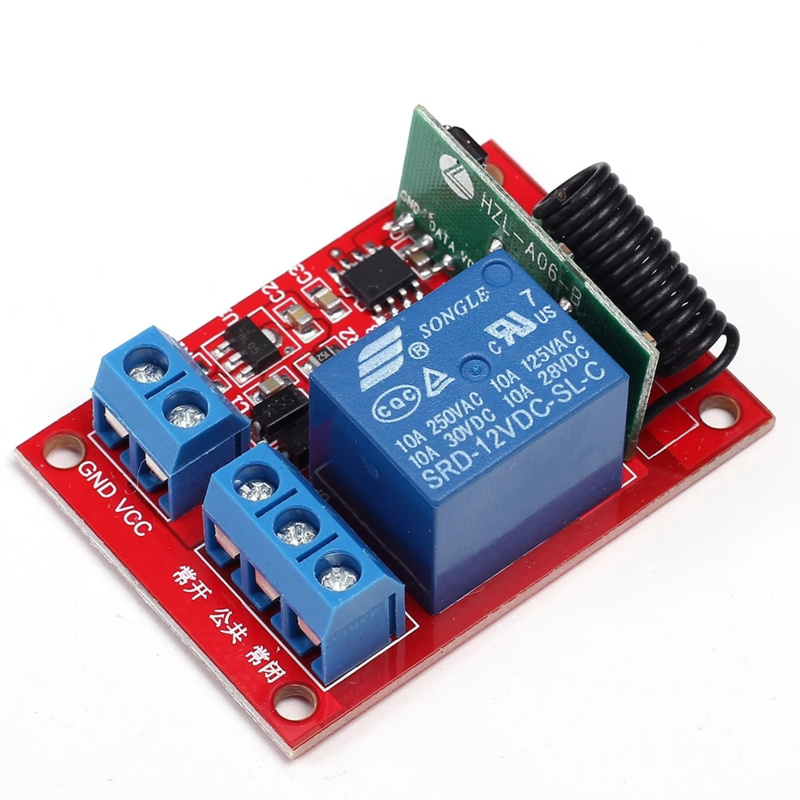

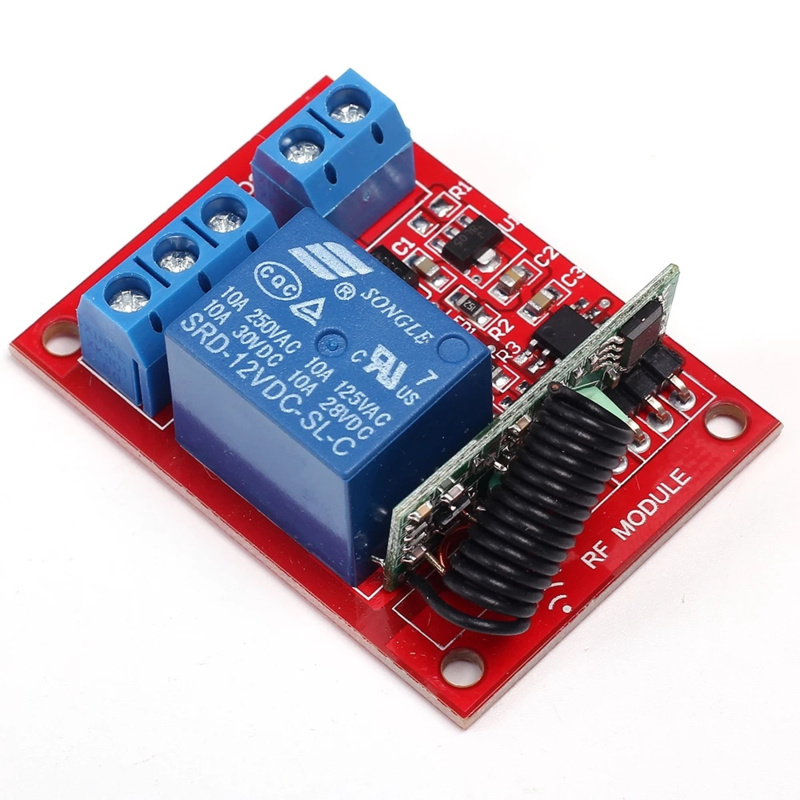

Channel Relay Module with RF Remote Control. Consists of a Relay receiver model and a remote control with 2 buttons. The module works with DC 12V and supports a maximum load of 250VAC-10A, 30VDC-10A.
Ideal for your own Smart Home/IOT projects: make a smart switch yourself
Features
Operating voltage: 11.5-12.5V; VCC connects to the positive pole; GND connects to the negative pole; NC, COM, NO connection with output
Working current: 40mA (relay working state)
Quiescent current: 6mA (relay release state)
Size: 35*48mm with 4pcs mounting screw holes
433Mhz RF wireless reception
Receiving distance: 15-30m
Working mode: self-lock
Working indication: LED1 (power indicator light), LED2 (relay switch indicator light)
Relay max. load: 250V AC-10A, 125V AC- 10A;30V -10A;28V -10A

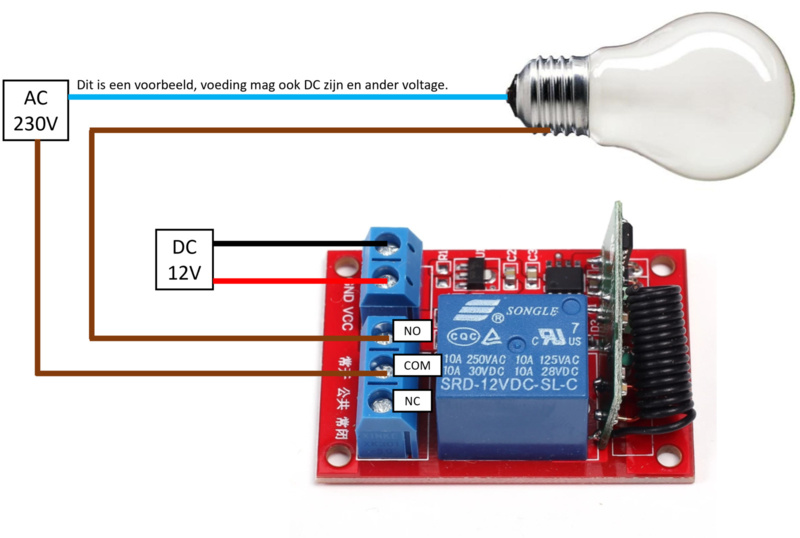

After power on, press the ON key on the remote control, the relay will work (COM port and NO are connected); press the OFF key, the relay is released (restore to the original state, COM port and NC port are connected); subsequent operations can be repeated (ON as for control on, OFF is for control off)_x005F_x000D_
Ideal for your own Smart Home/IOT projects: make a smart switch yourself
Features
Operating voltage: 11.5-12.5V; VCC connects to the positive pole; GND connects to the negative pole; NC, COM, NO connection with output
Working current: 40mA (relay working state)
Quiescent current: 6mA (relay release state)
Size: 35*48mm with 4pcs mounting screw holes
433Mhz RF wireless reception
Receiving distance: 15-30m
Working mode: self-lock
Working indication: LED1 (power indicator light), LED2 (relay switch indicator light)
Relay max. load: 250V AC-10A, 125V AC- 10A;30V -10A;28V -10A
After power on, press the ON key on the remote control, the relay will work (COM port and NO are connected); press the OFF key, the relay is released (restore to the original state, COM port and NC port are connected); subsequent operations can be repeated (ON as for control on, OFF is for control off)_x005F_x000D_
