HC-05 6pin Bluetooth Module CSR BC417 - Reliable Wireless Communication (OT3381)

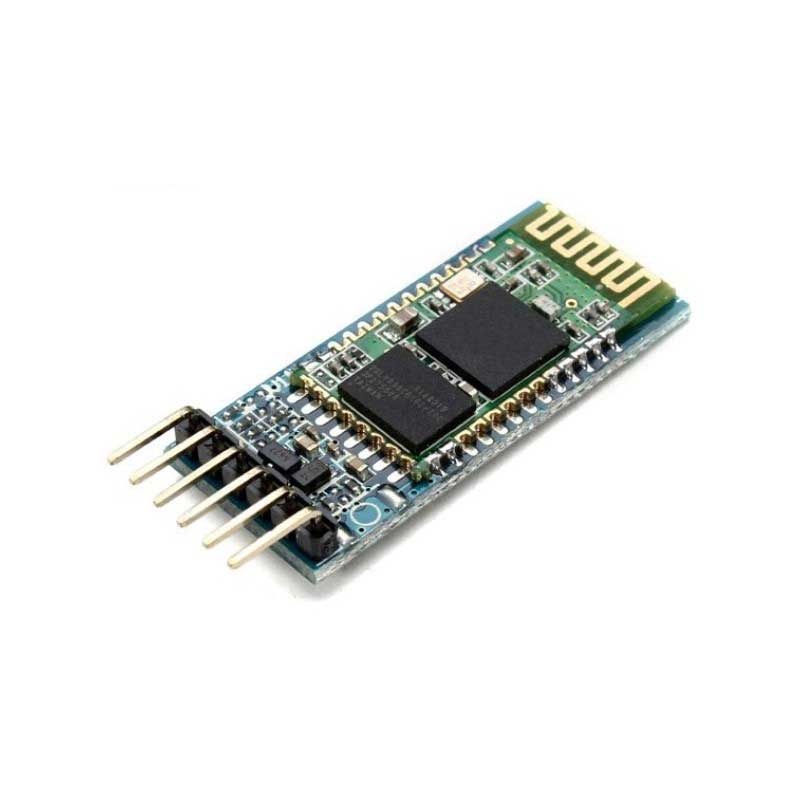

HC-05 6pin Bluetooth Module CSR BC417

The HC-05 6pin Bluetooth module is a compact and reliable solution for wireless communication. Equipped with a CSR Bluetooth Chip Solution, this module delivers stable performance according to Bluetooth Specification v2.0+ with Enhanced Data Rate (EDR).

Main Features

• Bluetooth version: v2.0+EDR with 2Mbps and 3Mbps modulation modes
• Support for Piconet and Scatternet – connection with multiple devices simultaneously
• UART interface with adjustable baud rate for flexible communication
• 3.3V power supply, suitable for various electronic projects
• Small size, easy to integrate into your system
• 8Mbit external flash onboard
• 802.11 Co-Existence for better compatibility with wifi networks
• Firmware version: 2.0-20100601
• Chip: original CSR BC417

Applications

This module is ideal for adding wireless communication to microcontroller projects, robotics, home automation, and other electronic applications requiring a reliable Bluetooth connection.

With the HC-05 module, you get a versatile Bluetooth solution that is easy to configure and ensures fast and stable data transfer.
