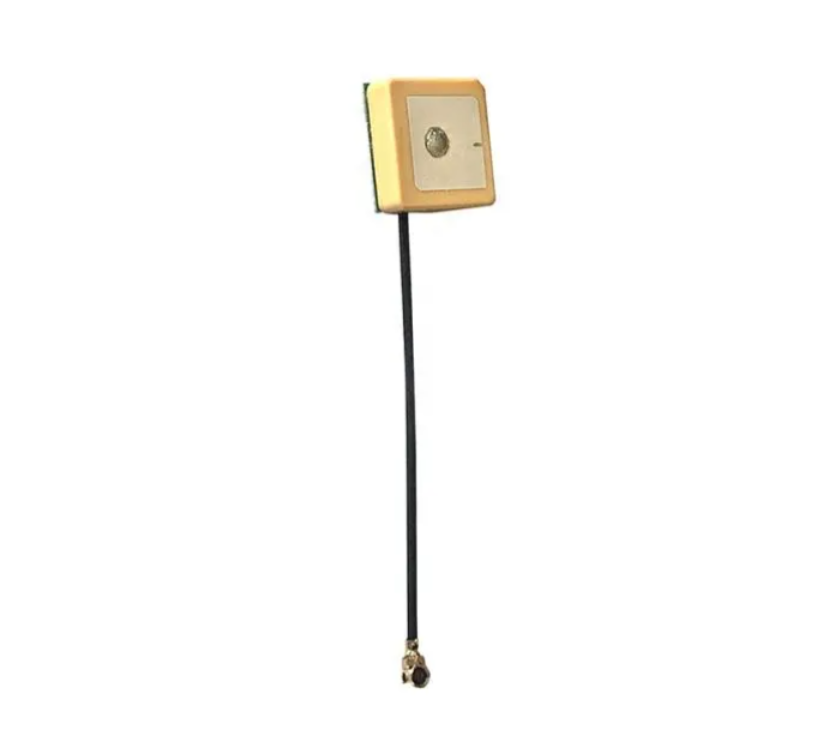

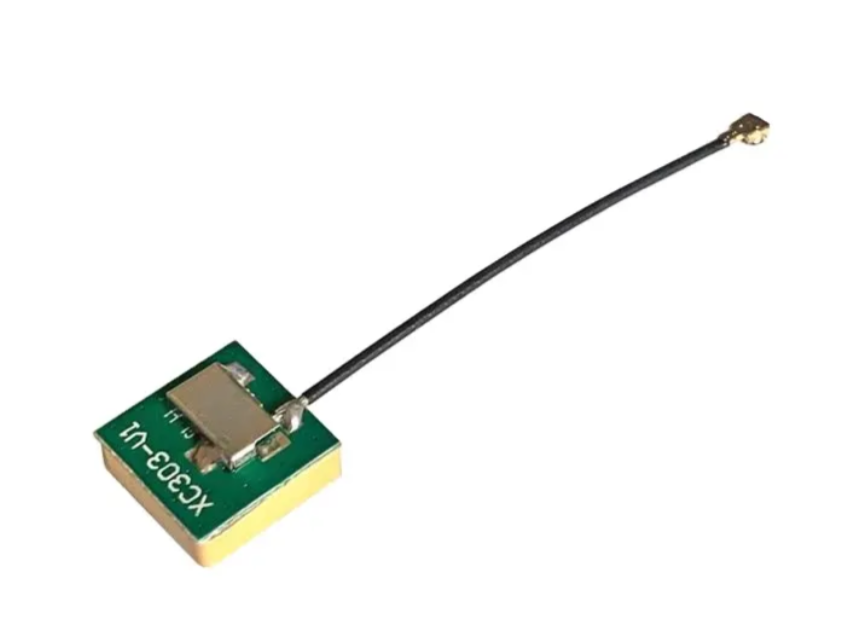

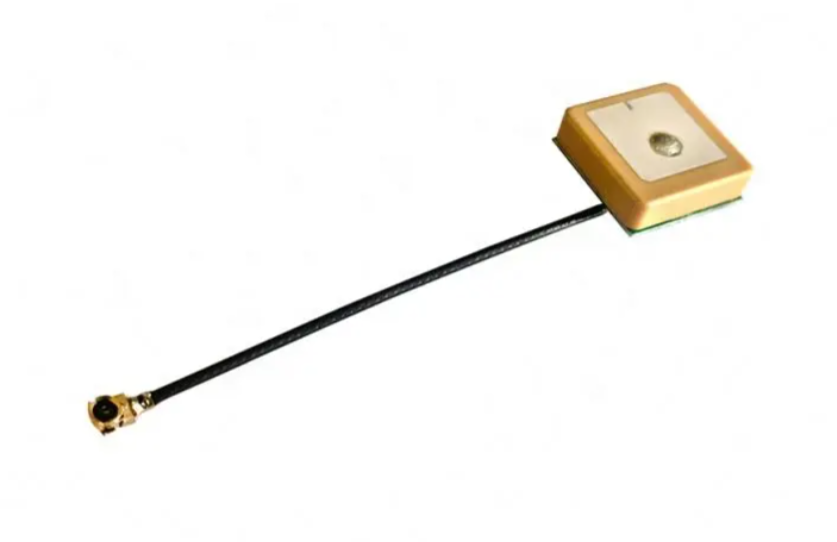

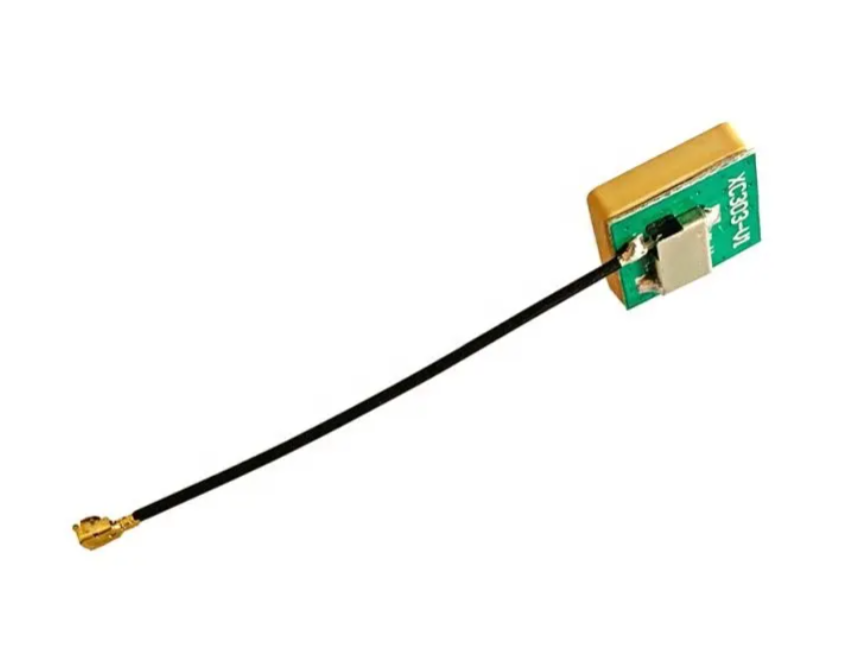

GPS Antenna 28dBi with IPEX Connector (OT7992)

This high-quality GPS antenna with 28dBi gain is specifically designed for applications requiring a strong and stable GPS signal. With right-hand circular polarization (RHCP) and a low VSWR (<2.0), this antenna ensures excellent performance and precise positioning.

With a frequency range of 1575.42 MHz and 1561 MHz, this antenna is compatible with multiple satellite navigation systems, including GPS and BeiDou. The IPEX1 connector and 10 cm RF1.13 cable allow easy integration into compact electronic systems such as drones, IoT devices, and embedded navigation solutions.

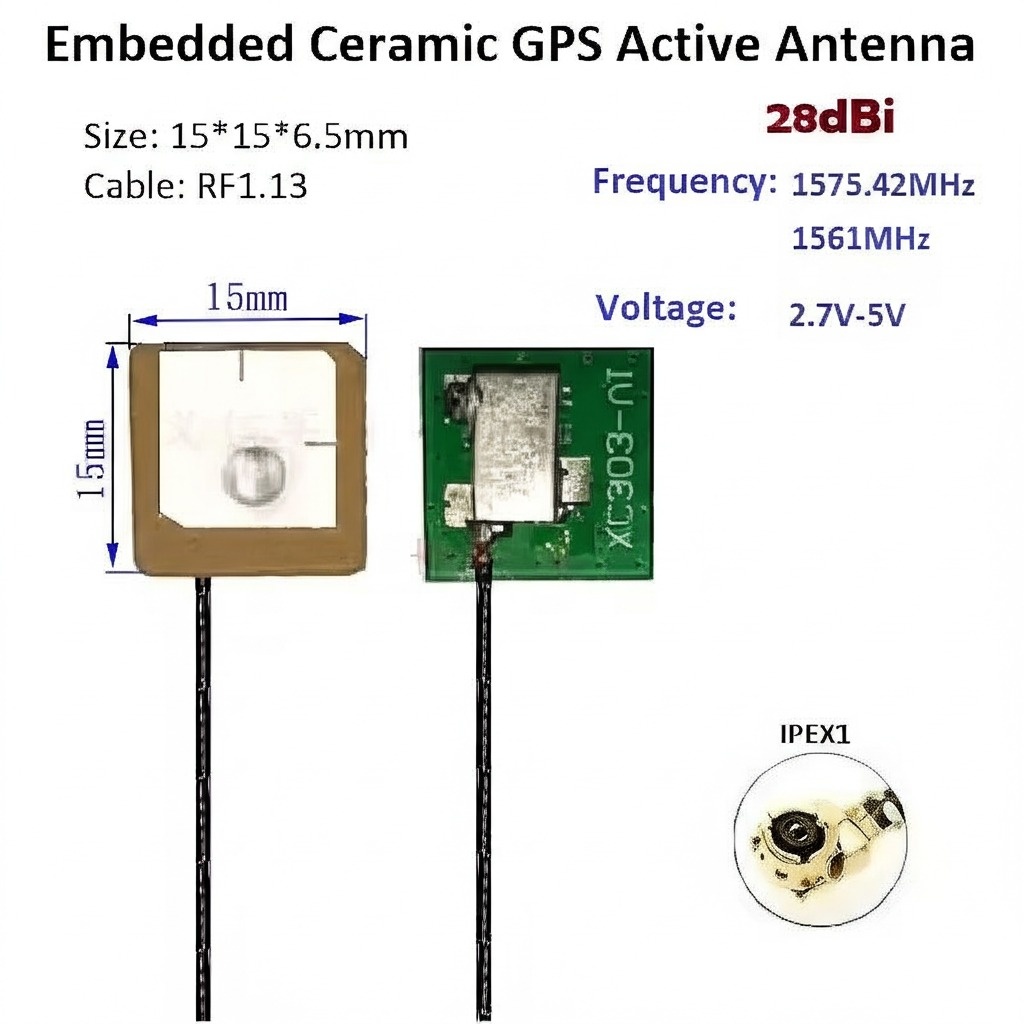

Technical Specifications:

• Frequency: 1575.42 MHz / 1561 MHz
• Impedance: 50Ω
• Antenna Polarization: RHCP (Right-Hand Circular Polarization)
• Gain: 28dBi
• VSWR: <2.0
• Voltage Supply: 2.7 V - 5 V
• Power Consumption: 10mA
• Connector Type: IPEX1
• Cable Type: RF1.13
• Cable Length: 10 cm

This compact and efficient antenna is perfect for applications requiring reliable GPS reception. Ideal for integration into small electronic devices with limited space, without compromising signal quality.
