LED with WS2812B Chip on mini PCB (OT3725)
Show all:
Components,LED
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
30 days cooling-off period
1 jaar garantie
Description

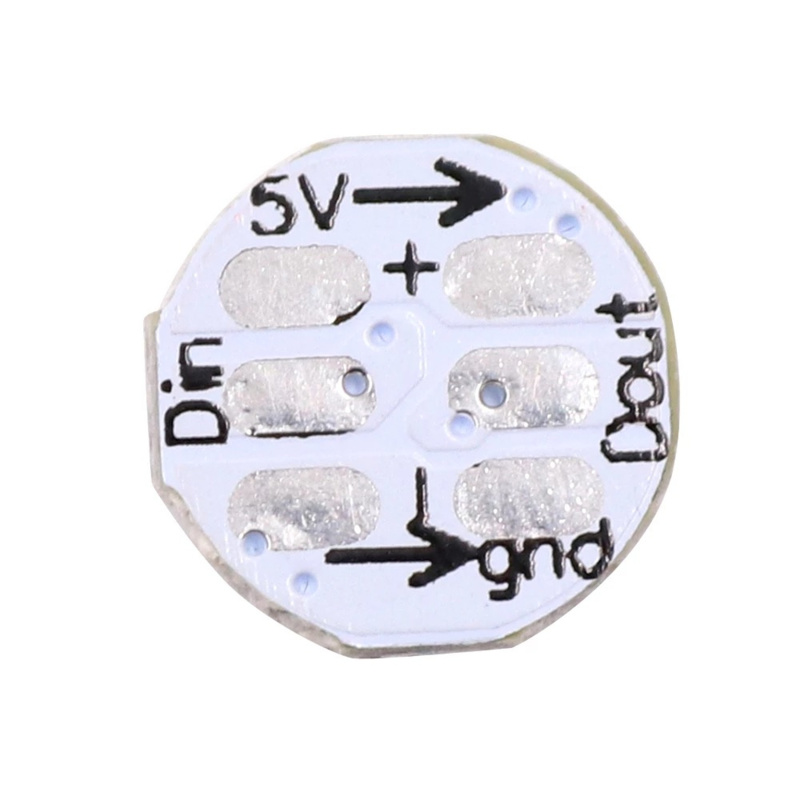

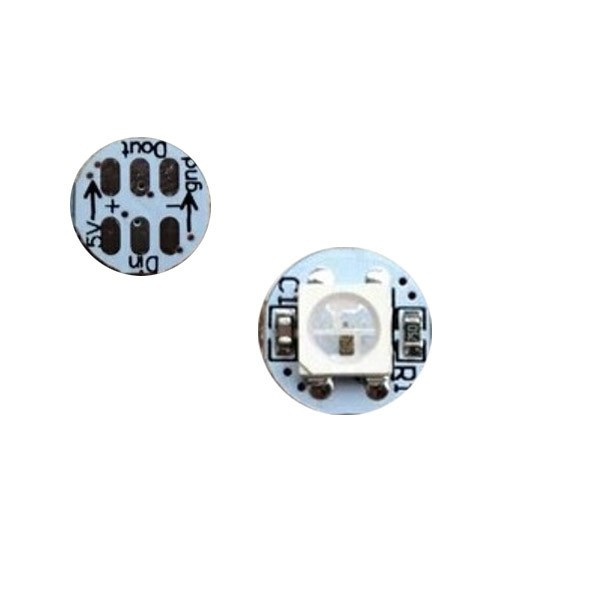

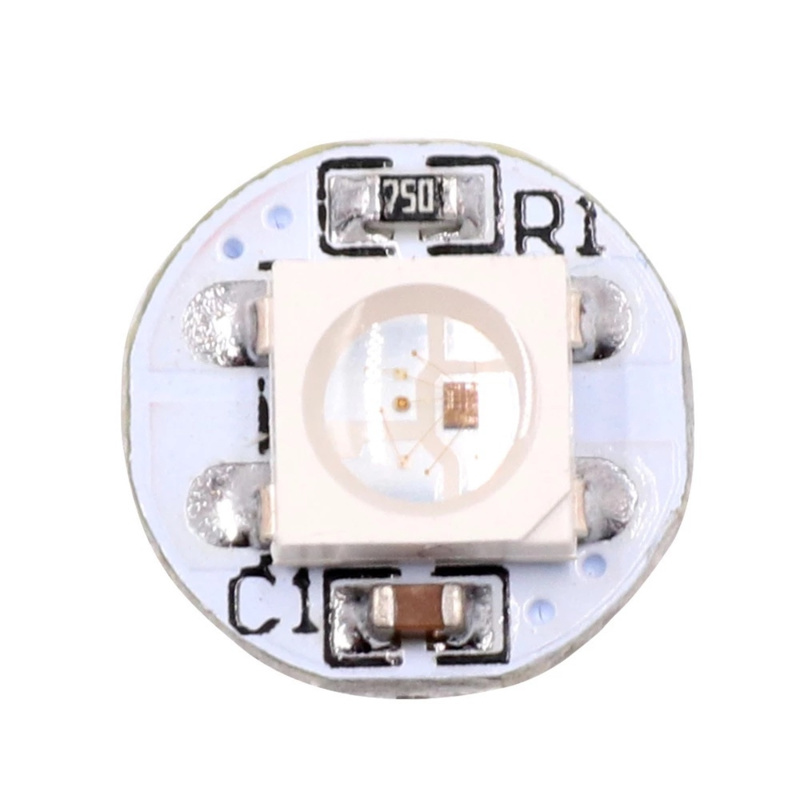

Bright 5050 SMD RGB LED with integrated WS2812b chip. This controllable LED is ideal for Arduino projects. To easily set up a circuit, wires can be soldered on the bottom and the LED also has the necessary reserve capacitor.
IC model: WS2812B
For easy production of a light chain, LED matrix or LED pixel wall
Bright 5050 SMD LED
Grayscale: 256
Operating voltage: DC 5V
Ideal for many Arduino and Raspberry Pi projects
PCB dimensions: diameter 10 mm, thickness 3 mm
Works with the Neopixel Library (Github)
More about the similar Neopixels
Datasheet
IC model: WS2812B
For easy production of a light chain, LED matrix or LED pixel wall
Bright 5050 SMD LED
Grayscale: 256
Operating voltage: DC 5V
Ideal for many Arduino and Raspberry Pi projects
PCB dimensions: diameter 10 mm, thickness 3 mm
Works with the Neopixel Library (Github)
More about the similar Neopixels
Datasheet
