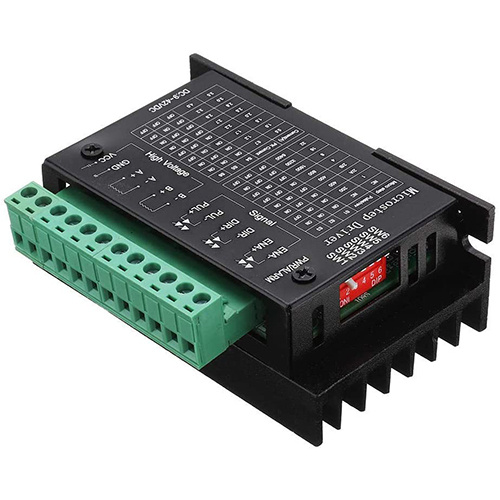

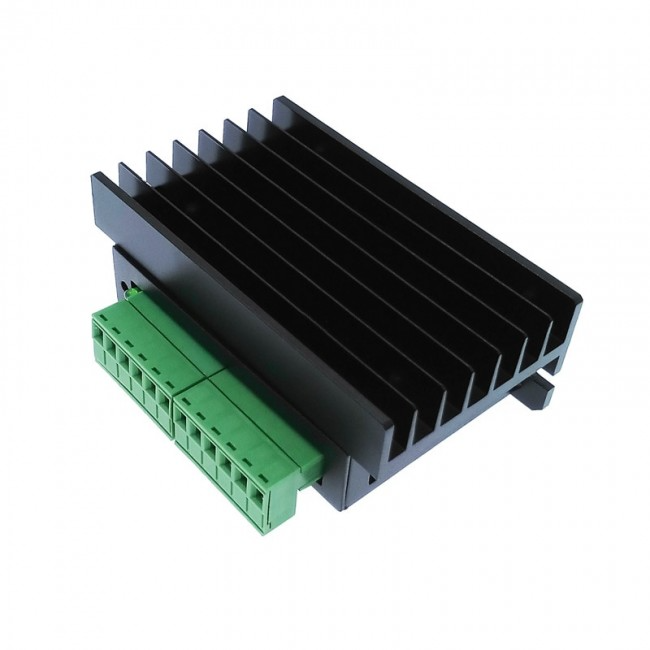

TB6600 Stepper motor driver for Nema 17/23/34 | 9-42V 4A (OT9556)

The TB6600 Stepper Motor Driver is a professional and easy-to-use module, ideal for controlling a wide range of stepper motors in various applications such as CNC machines, 3D printers and robotics. This driver is especially suitable for commonly used stepper motors such as Nema 17, Nema 23 and Nema 34, but is also compatible with many other types of stepper motors. Thanks to the support of a 5V digital pulse signal, the driver is easy to control with microcontrollers such as Arduino. The wide operating range of 9 to 42VDC and a peak current capacity of 4A ensures that the TB6600 can provide sufficient power for most stepper motors.
The driver supports both speed and direction control, and the 6 DIP switches on the side allow you to easily adjust the microstep settings and output current. There are 7 different microstep options available (1, 2/A, 2/B, 4, 8, 16, 32) and 8 adjustable current levels (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A).
Specifications:

Input Voltage: 9-42V DC
Output Current: 0.5A-4.0A
Driving Mode: Dual Constant Current PWM Drive Output
Microsteps: 7 Levels (1, 2/A, 2/B, 4, 8, 16, 32)
Current Settings: 8 Levels (0.5A - 4A)
Anti-interference: High anti-interference ability
Noise level: Low vibration and low noise
Insulation resistance: >500MΩ at normal temperature and pressure
Insulation strength: 500V/min at normal temperature and pressure
Protection: Overheating, overcurrent, undervoltage lock, anti-reverse protection of input voltage
Compatibility: Suitable for Nema 17, Nema 23, Nema 34 and many other stepper motors
Cooling: Natural cooling or forced air cooling
Storage temperature: -20°C to 65°C
Ambient humidity: <80% RH (no condensation, no frost)
Vibration resistance: Max. 5.7m/s²

Usage Tips:

Avoid use in environments with dust, oil, corrosive gases, or explosive materials.
Ensure that pulse and direction signal lines are not placed close to the motor and power supply lines; keep them at least 10cm apart.
Do not disconnect the driver's power connector while the power is on to avoid damage.
Ensure that the wiring is connected properly without exposed ends to avoid accidental short circuits and damage.

The TB6600 Stepper Motor Driver is a reliable choice for both professionals and hobbyists who demand precision and versatility in their stepper motor drivers.
