Description

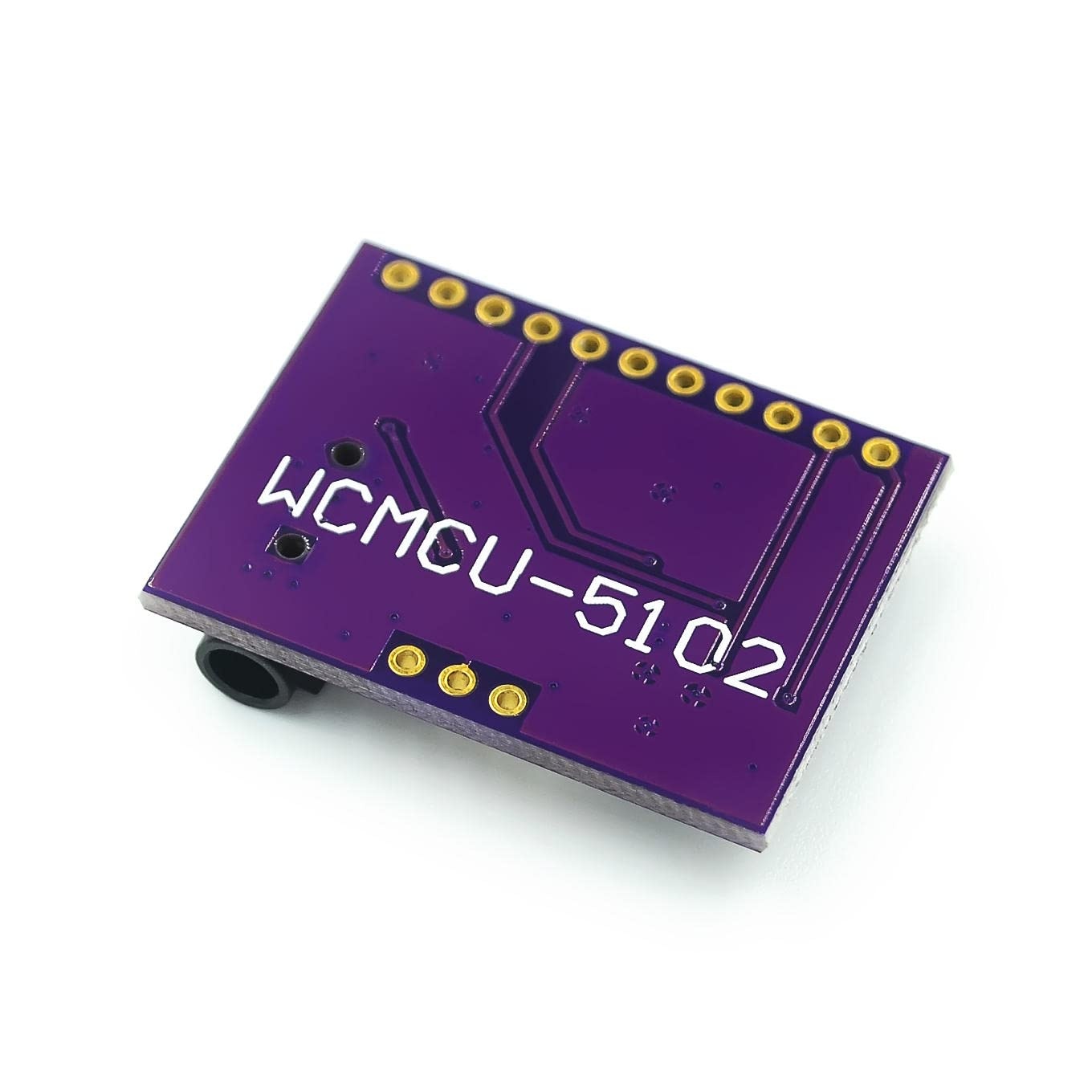

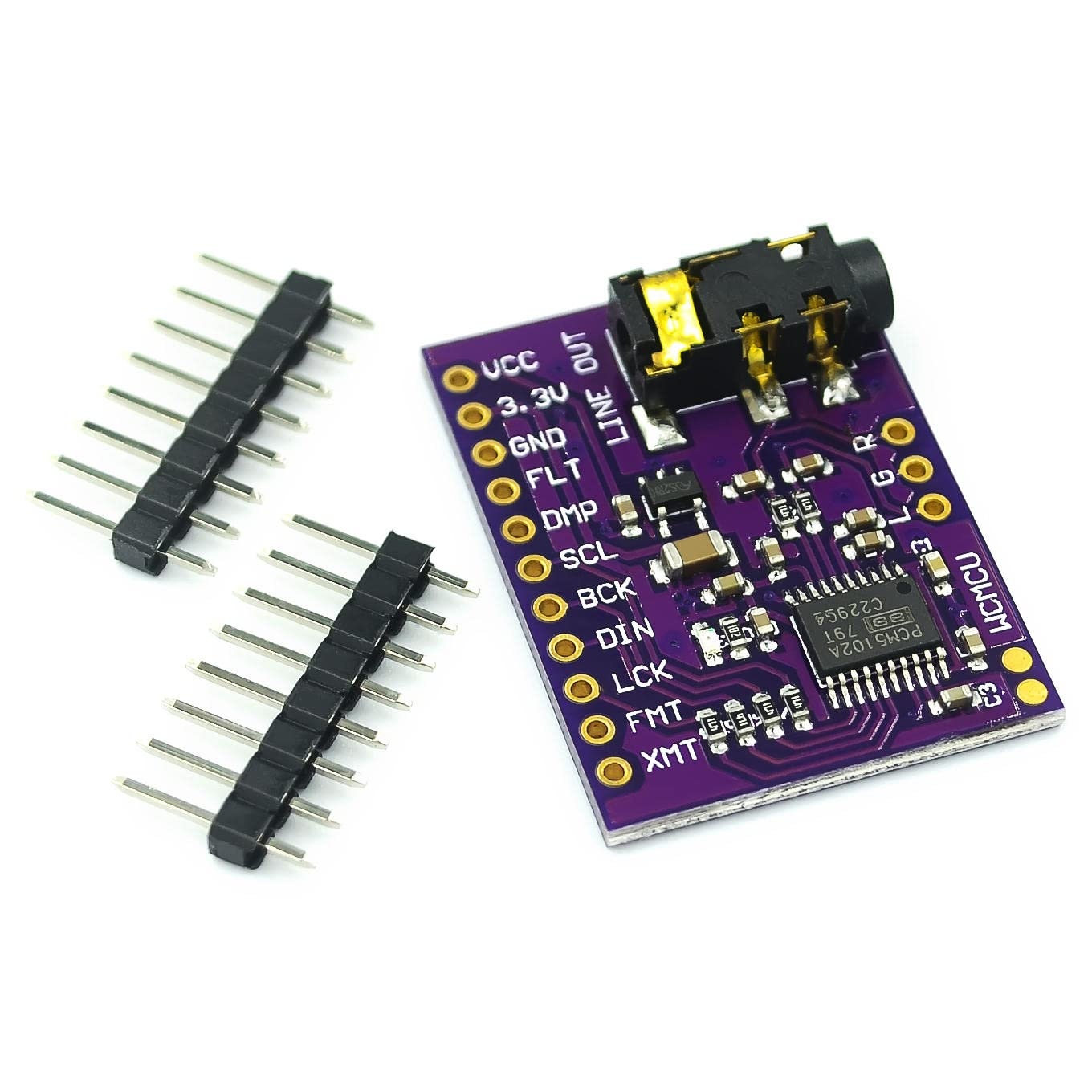

This PCM5102A is a Digital-to-Analog Converter (DAC) module is primarily intended for converting digital audio information into an analog audio signal.
Technical Specifications:
Resolution: The PCM5102A supports high-resolution audio with bit depths up to 32 bits and sampling rates up to 384 kHz.
Direct Path Architecture: One of the unique features of the PCM5102A is its “Direct Path” architecture, which allows the signal to be sent directly to the output without the need for an external op amp or DC decoupling capacitor.
Connectivity: The PCM5102A uses the I2S interface, which is commonly used in audio applications to transfer digital audio signals between components.
Power Supply Voltage: 3.3V to 5V.
Chip: The WCMCU-5102 has a PCM5 102A chip_x005F_x000D_
Technical Specifications:
Resolution: The PCM5102A supports high-resolution audio with bit depths up to 32 bits and sampling rates up to 384 kHz.
Direct Path Architecture: One of the unique features of the PCM5102A is its “Direct Path” architecture, which allows the signal to be sent directly to the output without the need for an external op amp or DC decoupling capacitor.
Connectivity: The PCM5102A uses the I2S interface, which is commonly used in audio applications to transfer digital audio signals between components.
Power Supply Voltage: 3.3V to 5V.
Chip: The WCMCU-5102 has a PCM5 102A chip_x005F_x000D_
