4-channel optocoupler isolation module

4-channel optocoupler isolation module with PC817X for circuits that require signal isolation.

SKU: OT3262 Article number: AA639 EAN: 8720618231475 Location: F02.05

€ 2,10 Incl. VAT (€ 1,74 Excl. VAT)
In stock (14)
  • 30-day reflection period
  • 1-year warranty
  • Ordered on weekdays before 2:00 PM, shipped today
  • Free returns
Relay Module 5V Low with optocoupler Alternative Relay Module 5V Low with optocoupler € 2,20 View this alternative

4-channel optocoupler isolation module

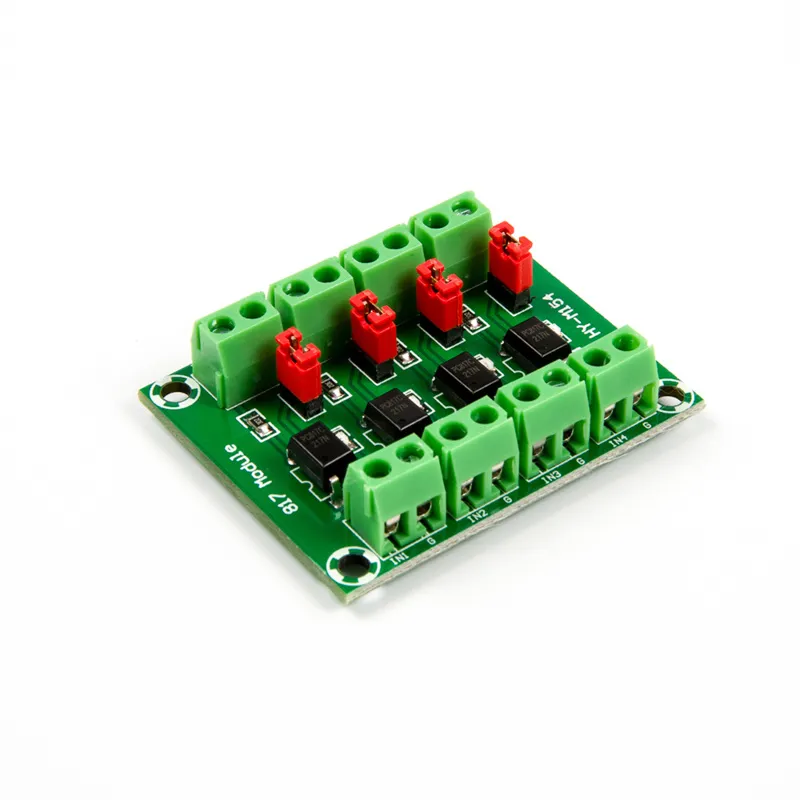

This Optocoupler board is equipped with 4 PC817X optocouplers. For an explanation of how optocouplers work exactly, we recommend watching the video with this product (English).

The jumper connects the minus/GND planes for a Common Ground. To achieve complete isolation, the jumper should be removed.

width=227

Voltage input (IN1-IN4): 3.6-24V
Voltage output (V1-V4): 3.6-30V
Maximum power per output: 150mW
Maximum switching frequency: 4kHz
Max. output current: 10mA

Download the datasheet of the PC817X optocoupler here

Dimensions
Length: 4.71cm
Width: 3.8cm
Height: 1.2cm

  • Optocoupler board
  • Adjustable jumper
  • 4 kHz
  • 4,71 x 3,8 x 1,2 cm
Playing loads the video from YouTube.

Why choose this product?

  • Full isolation – Remove jumper for full isolation.
  • Common ground possible – Jumper connects negative/GND planes.
  • Wide input voltage – Input works from 3.6 to 24V.
  • Higher output voltage – Output supports 3.6 to 30V.
  • Fast switching – Suitable up to 4kHz switching frequency.
Specifications
Dimensions4,71 x 3,8 x 1,2 cm
Power150mW
Input voltage3.6-24V
Output voltage3.6-30V
Frequency4kHz
Output current10mA
