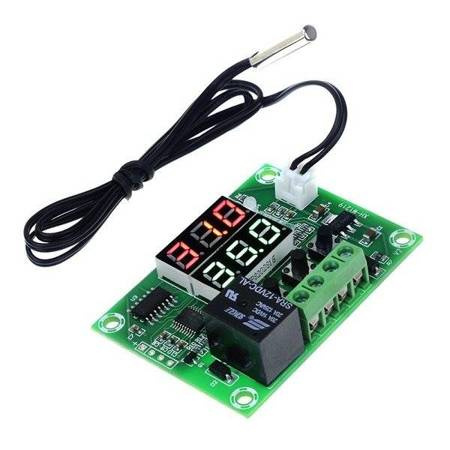

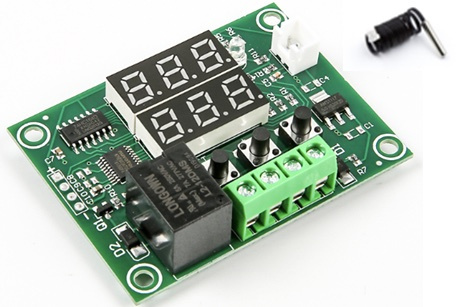

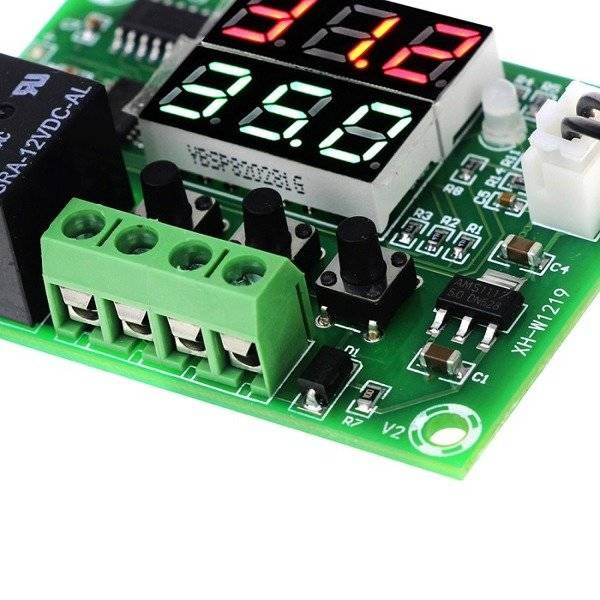

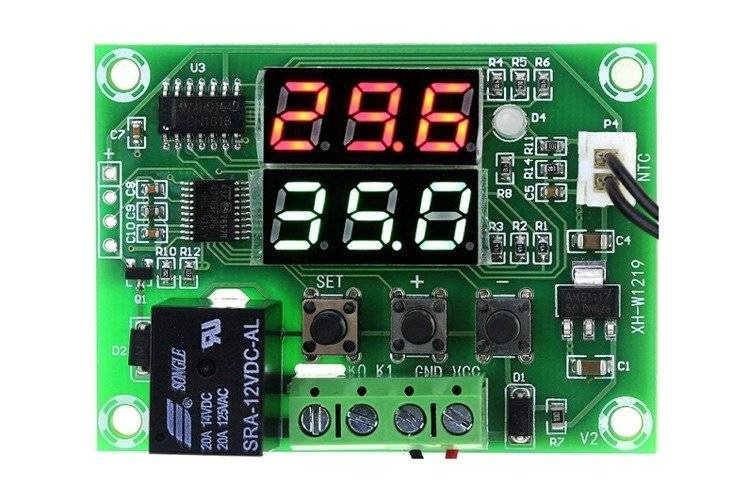

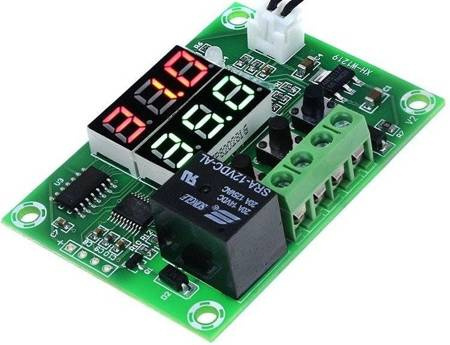

Digital Thermostat Relay with 2 Displays (Red & Blue) XH-W1219 (OT3547)

W1219 thermostat with a double digital display (the upper display shows the current temperature, the lower display the set temperature).A not too complicated module of an integrated thermostat that can regulate loads up to 2300W.Setting the temperature is very simple, just press the "SET" button and the display will start flashing. Then you can set the desired temperature value with the + and - buttons.The module has a heating and cooling function: H / C, depending on the selected mode. At H, the relay will be switched on below the set value until it is reached. On the other hand, the C function, i.e. cooling, will switch on the relay above the set temperature and will operate until it is reached. The module remembers the set value even after disconnecting the power supply. Supply voltage 12 VDC Current consumption 65mA Contact load 20A (for 14VDC) Contact load 10A (for 230VAC) Temperature control range -50 to 110CResolution 0.1CMeasurement frequency 2/s Comes with wire and temperature sensor
