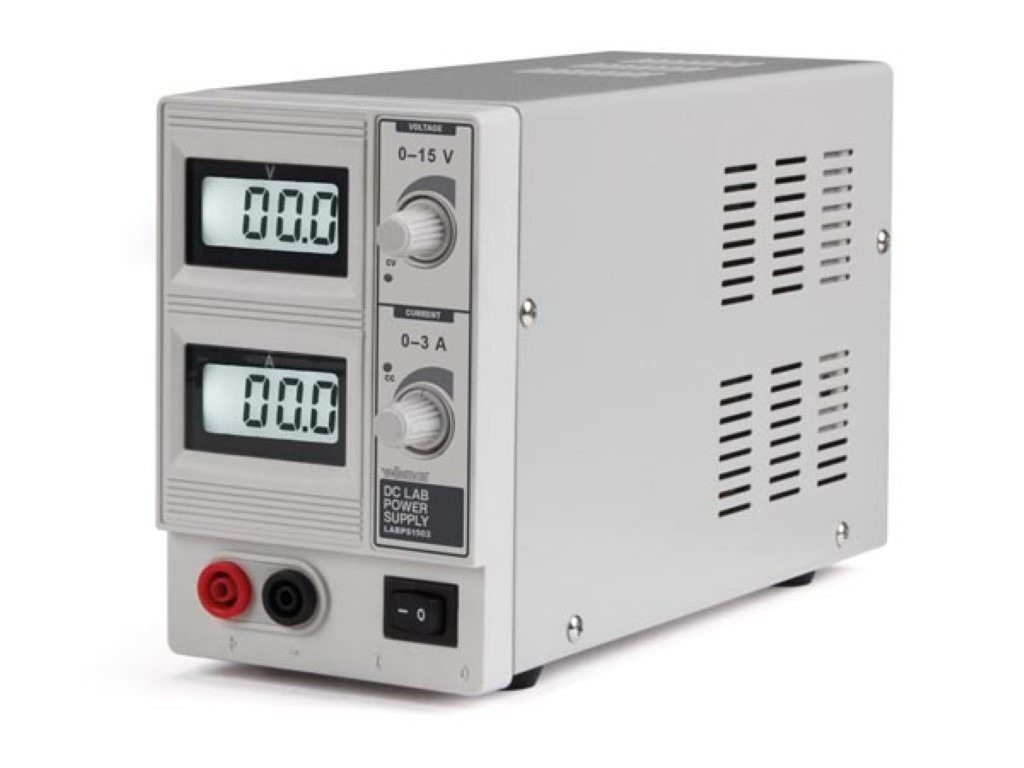

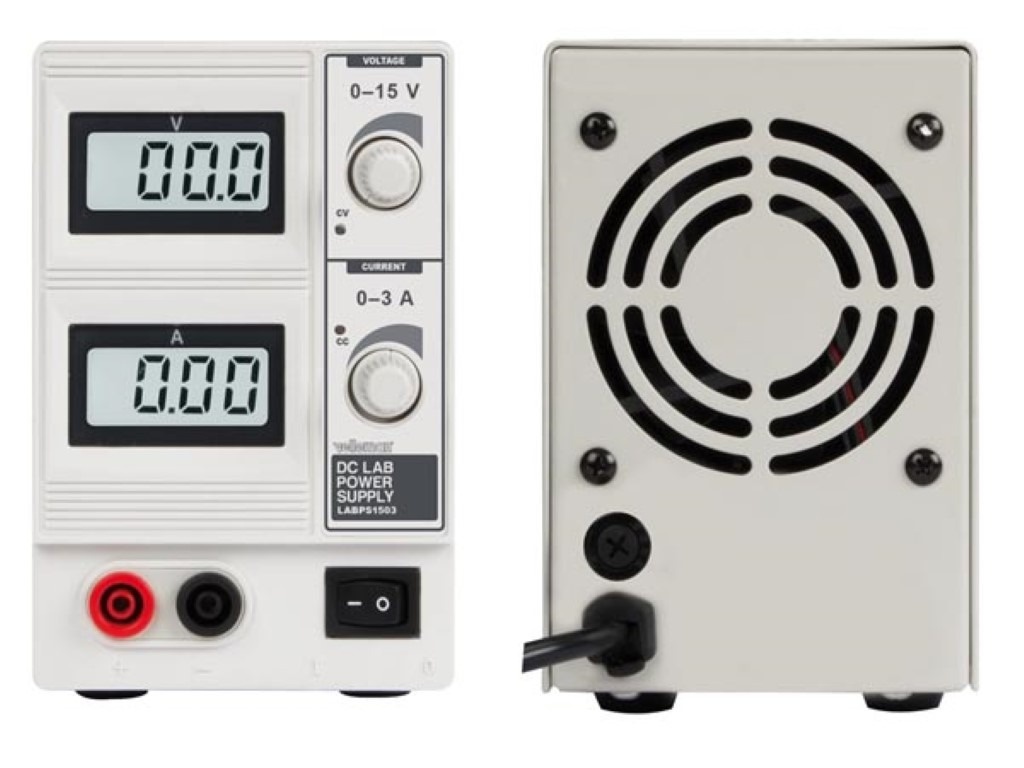

Velleman Adjustable Lab Power Supply, 0-15 VDC/0-3 A. LABPS1503 (OT5410)

With the Velleman lab power supply, you get a versatile and reliable instrument for testing electrical circuits. Whether you have a professional production line, manage a laboratory, perform electrical maintenance, do scientific research or are just an enthusiastic DIYer, this lab power supply is an excellent choice.
The lab power supply is specially designed to display current and voltage, so you can clearly see what is happening in the test circuit. With its wide range of applications, this is an indispensable tool for all kinds of electronic projects.
Safety and reliability are paramount at Velleman. This lab power supply is manufactured with high-quality components and equipped with a powerful fan to prevent overheating. In addition, various safety features are built in, such as current limiting, a fuse and isolated plugs, to protect both the user and the connected circuit.
Thanks to its compact and durable design, you can take this lab power supply anywhere and place it on any type of workbench without causing damage. The plug-and-play principle makes it easy to use: connect the test circuit to the lab power supply using a suitable cable and adjust the output current and voltage as desired. However, be careful not to overload the test circuit and therefore always check the technical specifications carefully first.
The Velleman lab power supply offers an output voltage of 0-15 VDC and a maximum adjustable output current of 0-3 A. The input voltage is 230 VAC at 50 Hz with a power of 85 W and a power factor of 0.75. The ripple voltage is minimal, only 1 mV, which ensures stable operation of the connected circuit.
Please note: connection cables are not included upon purchase, so make sure you have suitable cables to connect the test circuit.
In short, with the Velleman lab power supply you get a versatile, safe and reliable instrument that supports a wide range of applications and is an indispensable tool for electronic testing, maintenance and research.
Technical Specifications


input voltage: 230 VAC 50 Hz 0.8 A 85 W pf: 0.75
output voltage: 0-15 VDC max. adjustable
output current: 0-3 A max. adjustable
ripple voltage: 1 mV
height: max. 2000 m
temperature range: 5°C - 40°C
max. relative humidity: < 90%
fuse: F1AL 250 V
dimensions: 95 x 150 x 240 mm
weight: 2.958 kg
