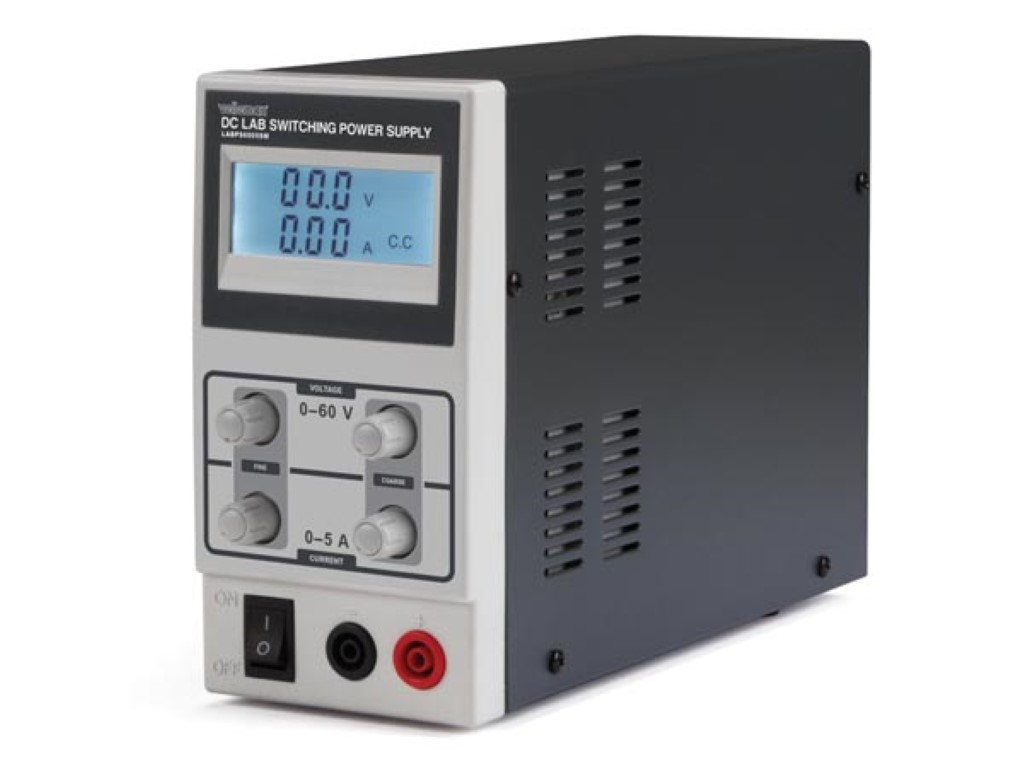

Velleman Laboratory Power Supply 0-60 VDC / 0-5 A - Adjustable & Switching (OT7735)

Velleman Laboratory Power Supply, Switching, Adjustable, 0-60 VDC/0-5 A

This Velleman laboratory power supply is suitable for testing electrical circuits with an adjustable output voltage from 0 to 60 VDC and a maximum current of 5 A. Thanks to the switching design, the power supply is efficient and reliable in use.

Main Features

• Wide range of applications: ideal for production line testing, laboratories, education, electrical maintenance, battery charging, and scientific research. Also suitable for DIY enthusiasts.
• Safe and reliable: built with high-quality components and equipped with a powerful fan to prevent overheating.
• Compact design: durable and easy to carry, fits on any workbench without damage.
• Plug-in design: easy to use and quickly deployable.
• Protection: equipped with current limiting, fuse, and insulated plugs for optimal user and circuit safety.

Specifications

• Output voltage: 0 - 60 VDC
• Maximum output current: 5 A
• Output power: 300 W
• Display type: LCD
• Fuse type: T 5 A (slow), 250 V
• Ripple voltage: 150 mV
• Electrical protection: current and voltage limiting
• Output connector type: IEC 1010
• Input voltage: 220 - 240 VAC, 50/60 Hz
• Power consumption: 420 W
• Power factor: 0.92

Dimensions and Material

• Dimensions (w x d x h): 85 x 230 x 160 mm
• Weight: 1.6 kg
• Material: steel, ABS, aluminum, PP, PVC
• Color: gray / dark gray

Package Contents

• 1 x laboratory power supply
• 1 x operating instructions (Dutch, English, French, German, Polish, Portuguese, Spanish)

Note: the lab power supply is delivered without connection cables.
