Description

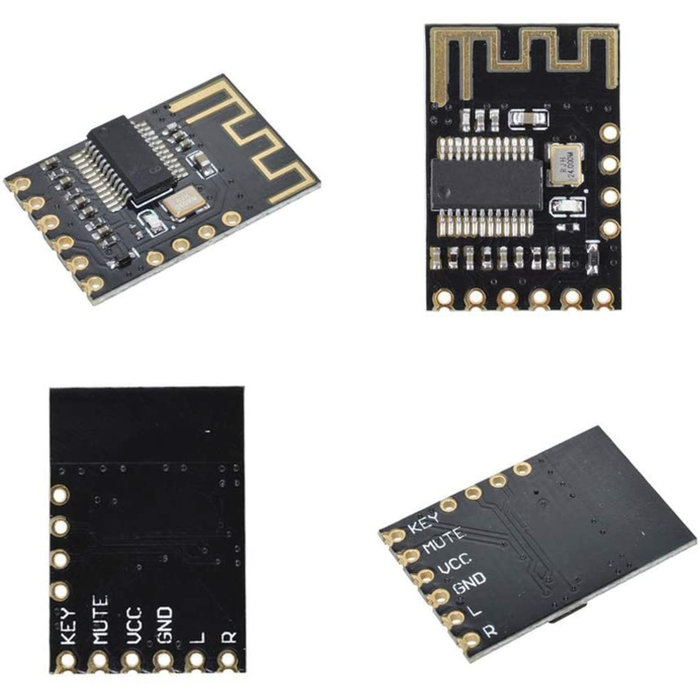

This MH-M18 Bluetooth audio receiver is a simple Bluetooth module that can be used to play audio via Bluetooth from a laptop or telephone, for example, on the audio pins present on this board. This module does not need to be programmed and can therefore be used very easily.
Specifications:
Supply voltage: 5V DC (via micro USB or "5V" pin) Power consumption without Bluetooth connection: 5.5mA Power consumption with Bluetooth connection: 20mA Bluetooth version: 4.2 Supported file types: WAV / WMA / FLAC / APE / MP3 Bluetooth name: MH-M18

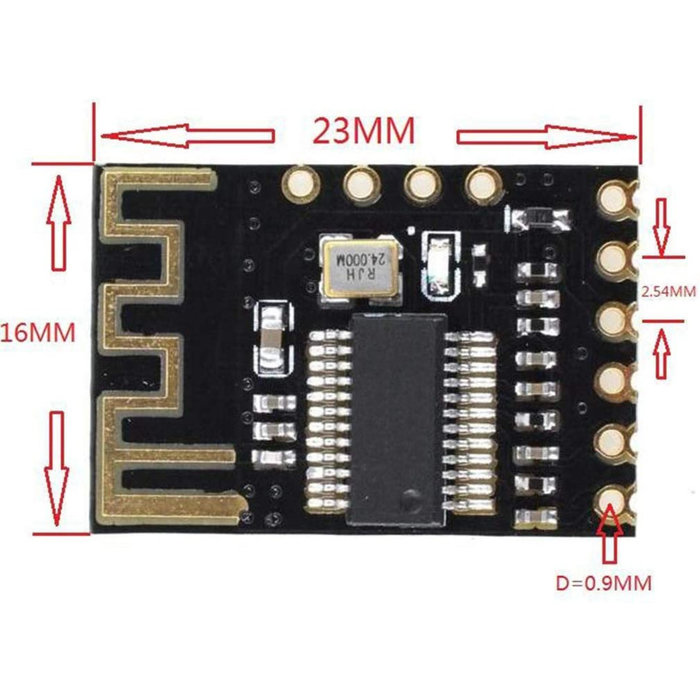

Dimensions Length: 2.3cm Width: 1.5cm Height: 0.3cm
Specifications:
Supply voltage: 5V DC (via micro USB or "5V" pin) Power consumption without Bluetooth connection: 5.5mA Power consumption with Bluetooth connection: 20mA Bluetooth version: 4.2 Supported file types: WAV / WMA / FLAC / APE / MP3 Bluetooth name: MH-M18
Dimensions Length: 2.3cm Width: 1.5cm Height: 0.3cm
