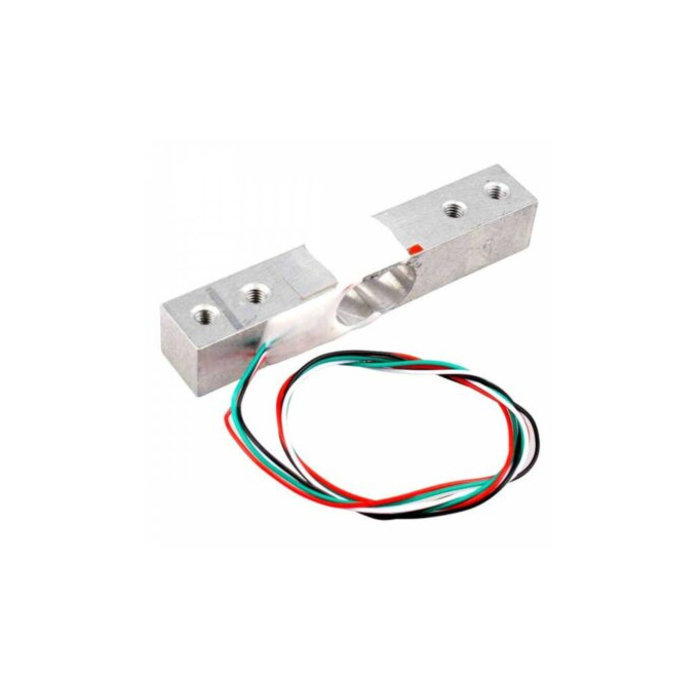

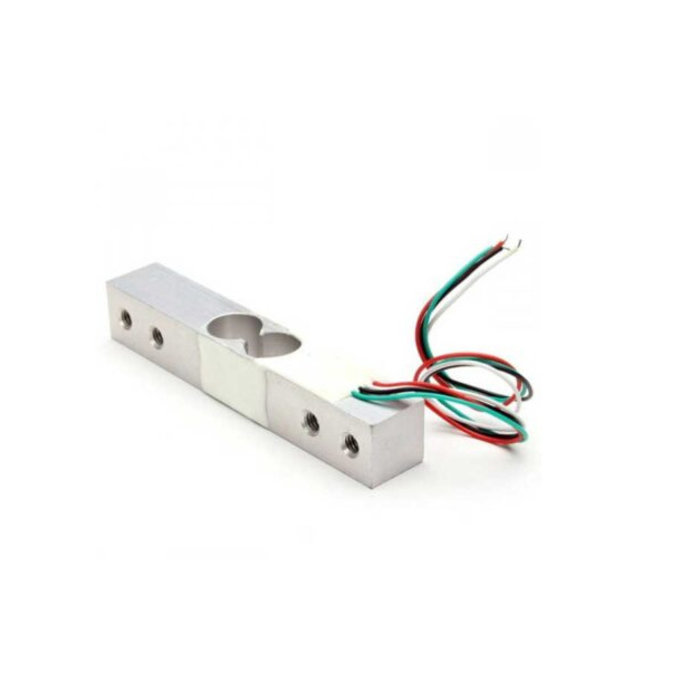

5kg Load Cell Sensor YZC-131 with wiring (OT3577)
Show all:
Sensors,Weight Sensors
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
This Load Cell is suitable for measuring up to 5kg and is used in digital kitchen scales, among other things. To read the sensor, you need an HX-711 Load Cell amplifier. You cannot connect the sensor directly to an Arduino. There are 4 tapped holes in the Load Cell so that you can mount it securely with M4 bolts. When mounting, make sure that it is mounted correctly for reliable measurement: with the green arrow pointing to the ground. Technical specifications Measuring range: 0 to 5kg Dimensions: 75 x 12.70 x 12.70 mm Weight: 30 grams Number of wires: 4 Connection wires Red: + Excitation Black: - Excitation Green: + Signal White: - Signal
