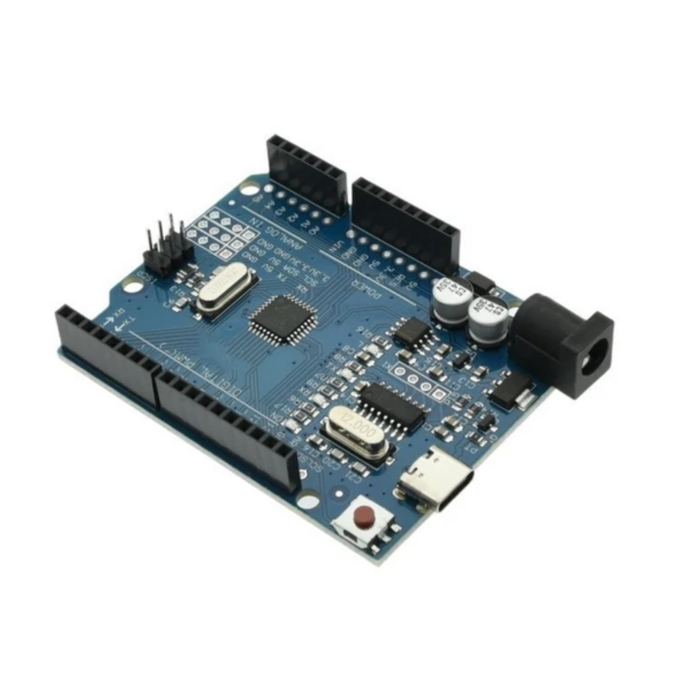

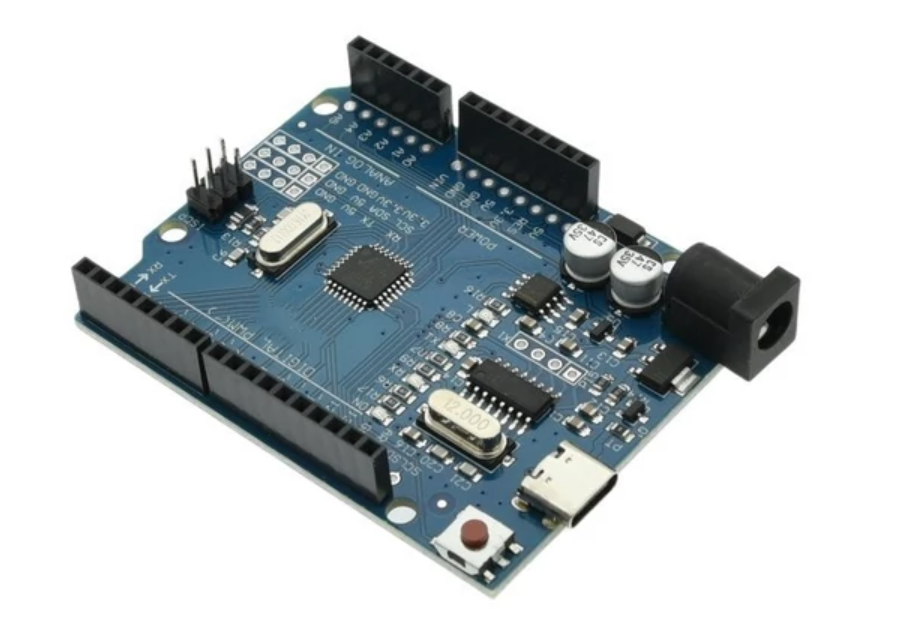

Arduino UNO R3 compatible USB-C with cable and header pins (OT8725)

Arduino UNO R3 compatible USB-C including cable and header pins

This Arduino UNO R3 compatible is a fully functional board with USB-C connection, including a USB-C cable and 40 header pins. The board works exactly the same as the original Arduino UNO R3 and is suitable for use with the standard Arduino IDE software, available for Windows, Mac, and Linux.

Main specifications

• Microcontroller: ATmega328P
• Operating voltage: 5V
• Recommended input voltage: 7-12V
• Input voltage limit: 6-20V
• Digital I/O pins: 14 (of which 6 are PWM outputs)
• Analog input pins: 6
• DC current per I/O pin: 20 mA
• DC current for 3.3V pin: 50 mA
• Flash memory: 32 KB (of which 0.5 KB bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock speed: 16 MHz
• Connection: USB-C
• Dimensions: 68.4 mm x 53.1 mm x 10 mm
• Weight: 25 grams

Additional features

• 1 x UART
• 1 x SPI
• 1 x TWI
• Reset button
• LED indicator on digital pin 13
• ICSP header
• 14-pin header for expansion

Driver information

This Arduino clone uses the CH340 USB chip. In some cases, it is necessary to install a driver, especially on Windows and Mac. On Linux, this rarely occurs.

First check if the board is automatically recognized in the Arduino IDE. If a COM port appears, driver installation is not necessary.

If installation is needed, you can download the drivers here:

• CH340 driver for Windows
• CH340 driver for Mac
• CH340 driver for Linux

Note: downloading and installing drivers is at your own risk. We cannot guarantee that the drivers are always up-to-date and are not responsible for any malfunctions.
