Art: AA086EAN: 8720618690159

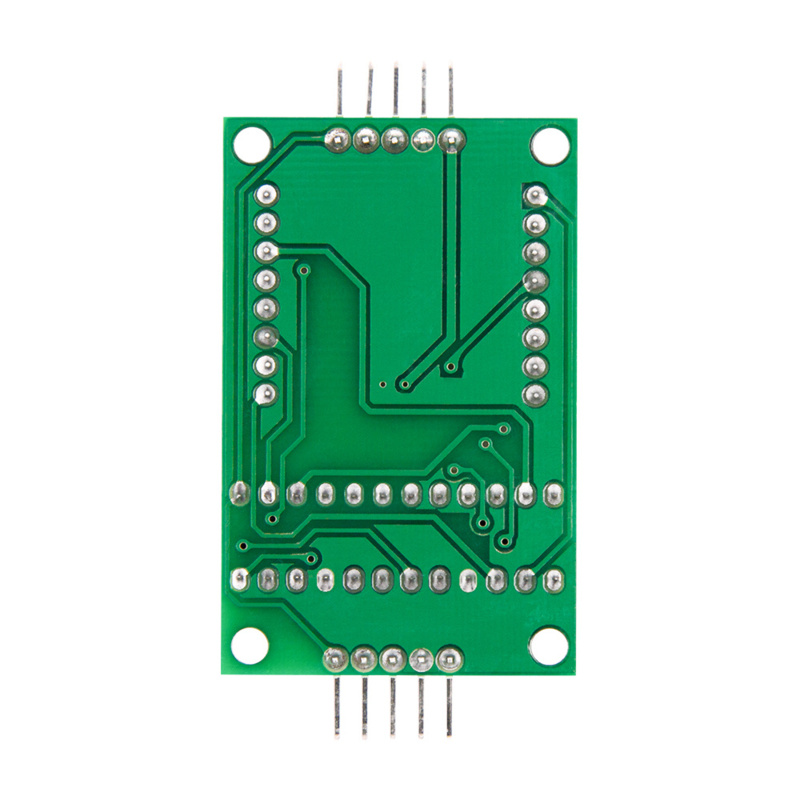

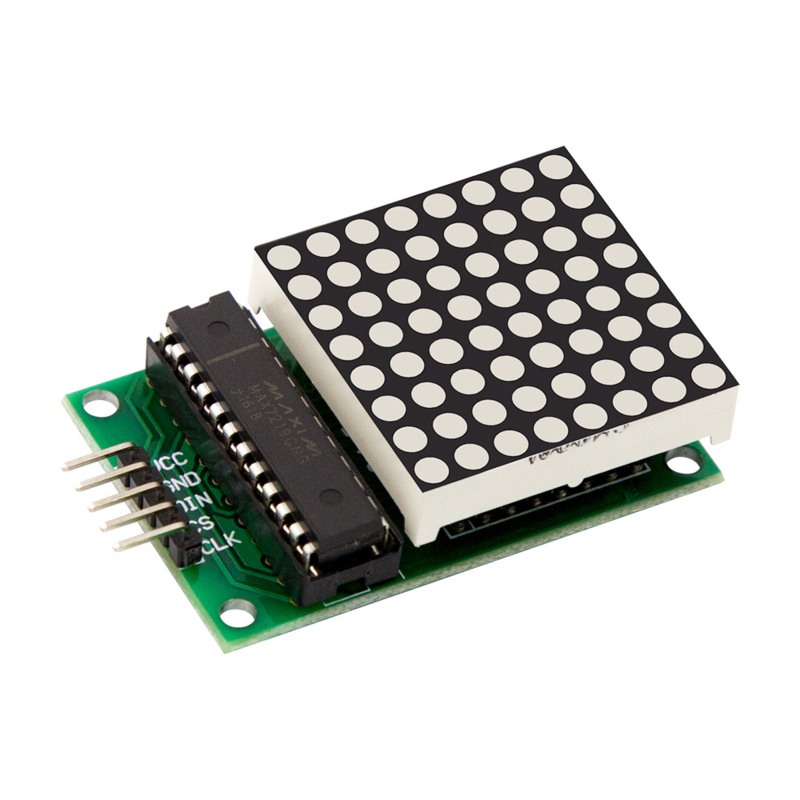

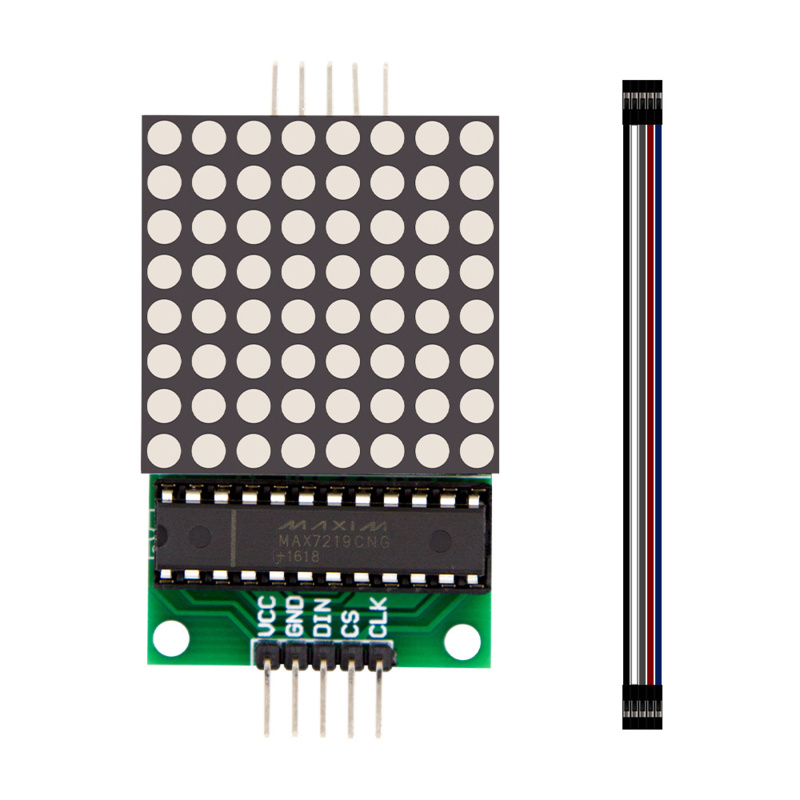

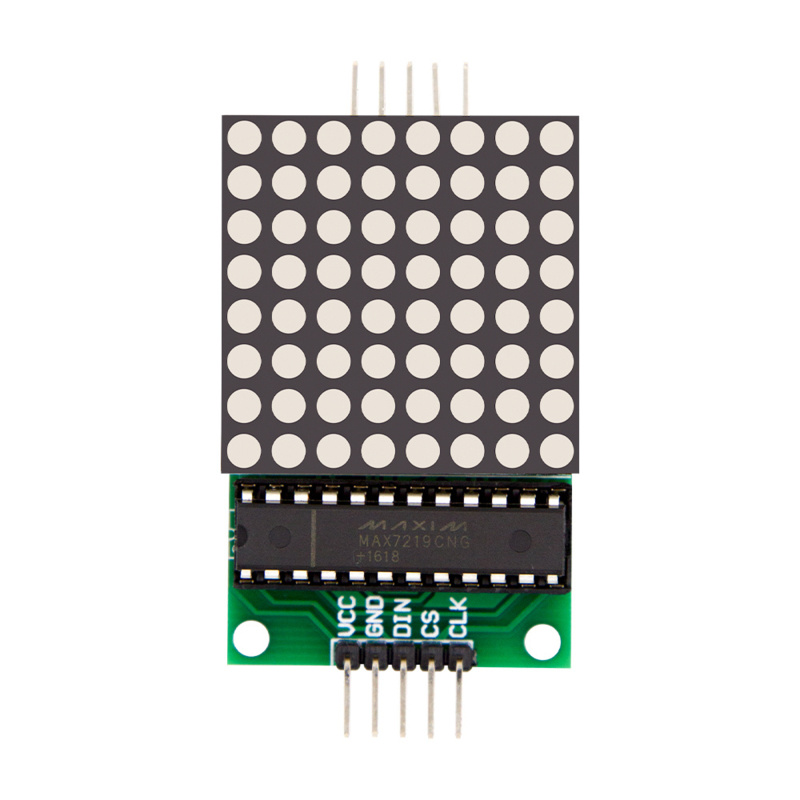

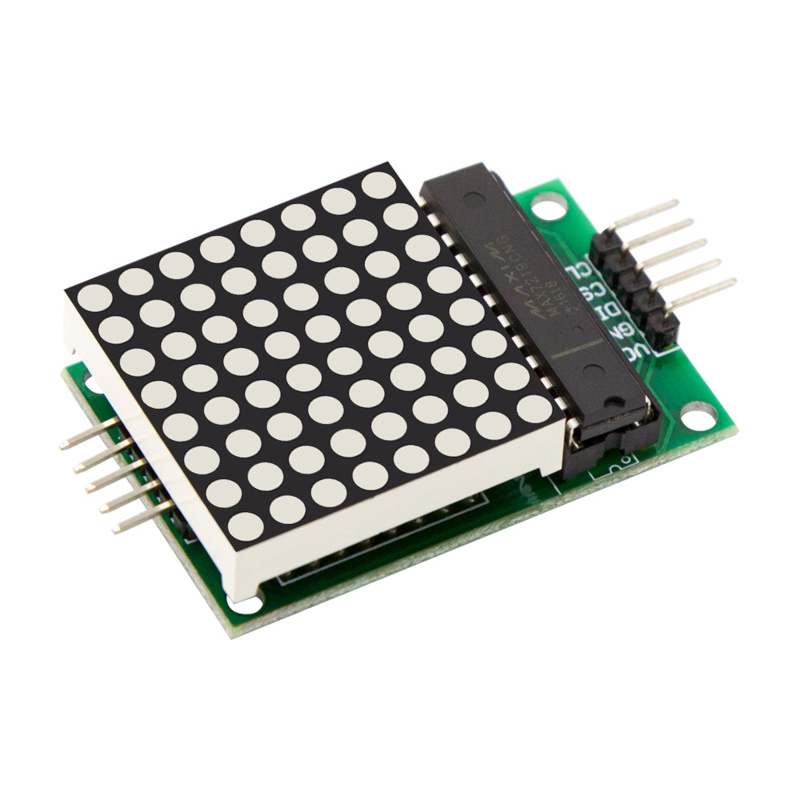

MAX7219 Dot Matrix LED Display Module Red (OT3584)
Show all:
Components,LED
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
convenient four-wire serial interface can connect all common microprocessors.
MAX7219 also allows the user to select any of the data codes or non-coded.
The whole device is provided with a 150μA low-power shutdown mode, analog and digital brightness control, a scan limit register allows the user to use 1-8 bits of data
Requires only three IO ports can drive a dot! No blinking dot matrix display! Support cascade!
Module parameters:
1 single module can drive common cathode 8*8 dot matrix;
2 module Operating voltage: 5V
3 Module size: 5cm X 3.2cm wide X 1.5cm high
4 holes with four screws, diameter 3mm, can be fixed using our M3 bolts
5 modules with input and output interfaces, support cascading multiple modules
MAX7219 also allows the user to select any of the data codes or non-coded.
The whole device is provided with a 150μA low-power shutdown mode, analog and digital brightness control, a scan limit register allows the user to use 1-8 bits of data
Requires only three IO ports can drive a dot! No blinking dot matrix display! Support cascade!
Module parameters:
1 single module can drive common cathode 8*8 dot matrix;
2 module Operating voltage: 5V
3 Module size: 5cm X 3.2cm wide X 1.5cm high
4 holes with four screws, diameter 3mm, can be fixed using our M3 bolts
5 modules with input and output interfaces, support cascading multiple modules
