MOSFET Module High Power 5-20V 10A - 4 Channel (OT3551)
Show all:
Components,Transistors
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
30 days cooling-off period
1 jaar garantie
Description

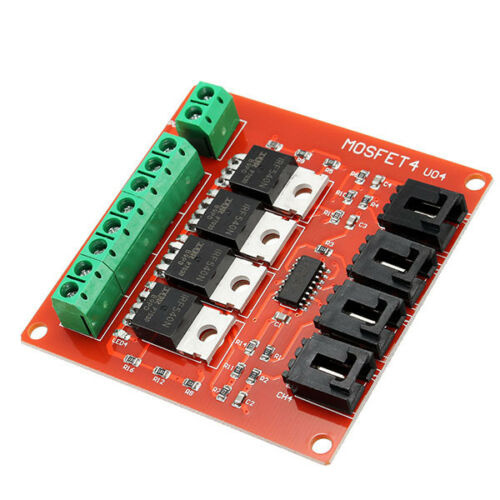

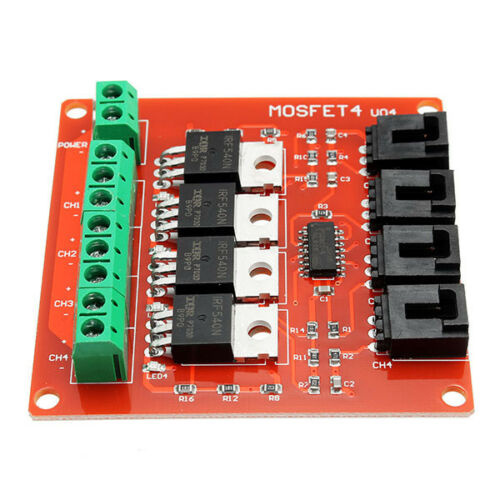

This MOSFET module based on IRF540 MOSFET makes it possible to control 4 different high-power devices.
The LED on the module indicates which MOSFET is switched on. This board is particularly useful for controlling a large LED strip or a motor (in one direction) using PWM.
Specifications:
Input voltage: 5 - 20V *Maximum current: ~10A (with heatsink up to 33A peak possible)Can be controlled with 3.3V and 5V signals (5V recommended)Has four 3mm holes for mountingDimensions: 66 x 66mm* Note: At voltages of 5-10V, the resistance in the MOSFET will be higher, which means that the maximum current will be lower and the heat dissipation will be higher. Additional cooling may be required.

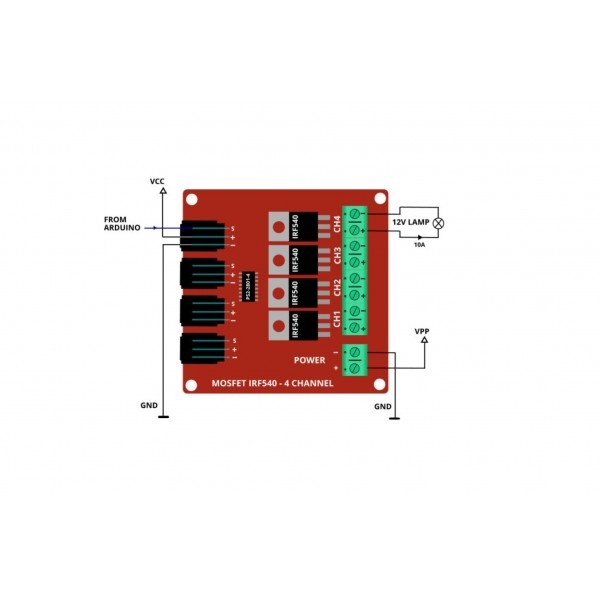

Pin descriptions black connectors (right):
- : GND/ground/min from Arduino+: VCC from Arduino (does not need to be connected)S: Signal pin from the ArduinoPin descriptions screw terminal blocks (left):
Power +: VPP Input voltage MOSFET (5 - 20V)Power -: GND/ground/min from input voltage+: Positive voltage for the component to be switched-: Negative voltage for the component to be switched
DimensionsLength: 6.5cmWidth: 6.5cmHeight: 1.4cm
The LED on the module indicates which MOSFET is switched on. This board is particularly useful for controlling a large LED strip or a motor (in one direction) using PWM.
Specifications:
Input voltage: 5 - 20V *Maximum current: ~10A (with heatsink up to 33A peak possible)Can be controlled with 3.3V and 5V signals (5V recommended)Has four 3mm holes for mountingDimensions: 66 x 66mm* Note: At voltages of 5-10V, the resistance in the MOSFET will be higher, which means that the maximum current will be lower and the heat dissipation will be higher. Additional cooling may be required.
Pin descriptions black connectors (right):
- : GND/ground/min from Arduino+: VCC from Arduino (does not need to be connected)S: Signal pin from the ArduinoPin descriptions screw terminal blocks (left):
Power +: VPP Input voltage MOSFET (5 - 20V)Power -: GND/ground/min from input voltage+: Positive voltage for the component to be switched-: Negative voltage for the component to be switched
DimensionsLength: 6.5cmWidth: 6.5cmHeight: 1.4cm
