Art: AA180EAN: 8720589817654

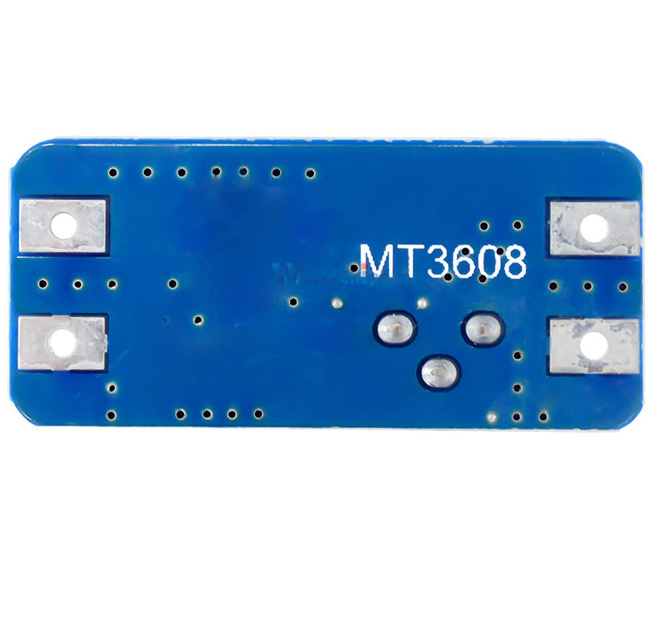

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module (OT5002)
Lage verzendkosten vanaf
Orders placed before 15:00 on working days are shipped the same day.
30 dagen bedenktijd
1 jaar garantie
Description
Input voltage: 2V-24V DCOutput voltage: 5V-28V DC
Note: This module is not suitable for powering electric motors or solenoids. For this purpose, please use a strong step-up booster module equipped with capacitors.
Output current: 1A (max), 0.5A (continuous), <100mA (input <4.0V), <50mA (input <3.5V)Module type: Non-isolated step-up (boost)Rectification: Non-synchronous rectificationConversion efficiency: 96% (highest)Switching frequency: 1.2MHzMaximum output ripple: 100mV (factory specification)Load regulation: ±0.5%Voltage regulation: ±0.5%Short circuit protection: NoWorking temperature: -45°C to +85°CPCB dimensions: 37 x 17mm
Note: The potentiometer can turn about 25 times (about 50 hand turns) from start to finish. So it may take a while to get the desired tension. The first time it may take many turns to see any change in tension at all.
DimensionsLength: 3.6cmWidth: 1.7cmHeight: 0.6cm
