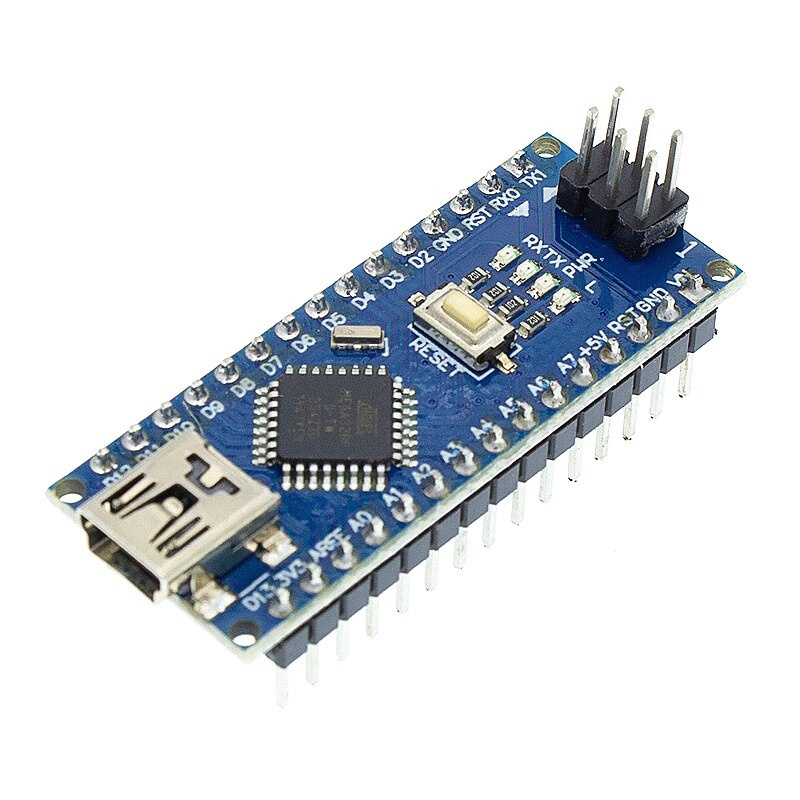

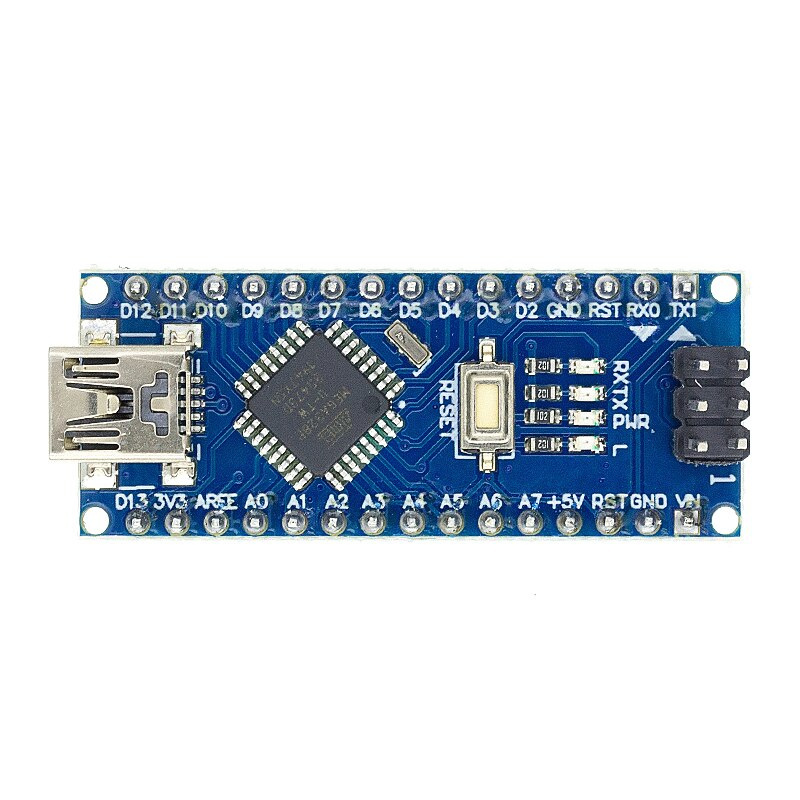

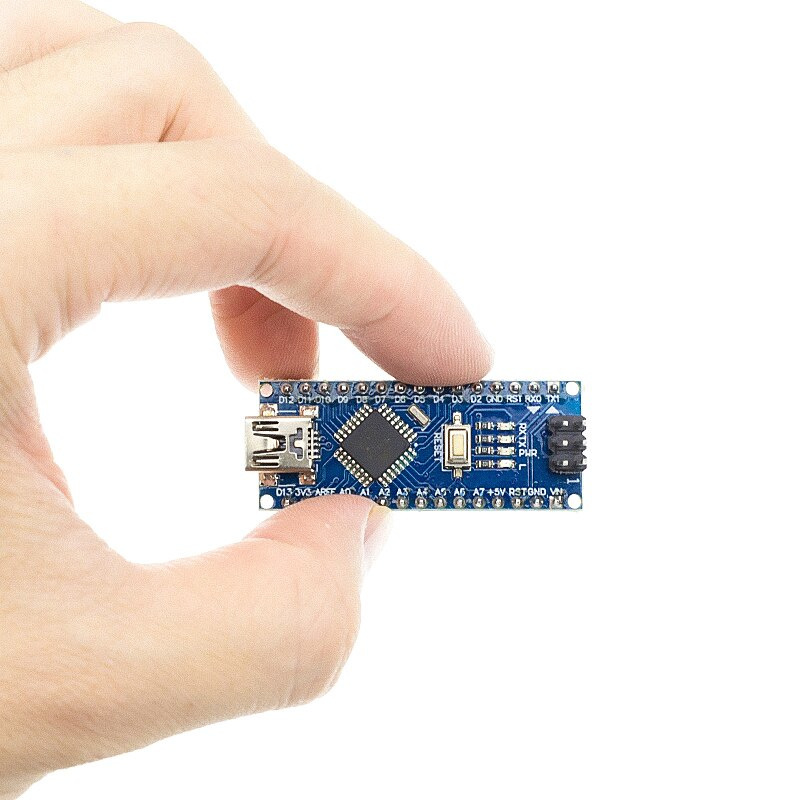

Nano V3 Arduino Compatible CH340 (pre-soldered) (OT111-B62)

An Arduino Nano clone. Works just as well but is a lot cheaper. Please note that the header pins are already soldered.
Microcontroller Atmel ATmega328Operating Voltage (logic level): 5VDCInput voltage (recommended): 7V ~ 9VDCInput Voltage (limit): 6V ~ 12 VDCDigital I/O Pins: 14 (of which 6 provide PWM output)Analog Input Pins: 8DC voltage per I/O Pin: 40mAFlash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)SRAM: 2KB (ATmega328)EEPROM: 1KB (ATmega328)Clock Speed: 16MHzThe Arduino Nano V3 is supplied without a USB cable
This Arduino Nano clone works exactly the same as the original Arduino Nano and can be programmed with the Arduino IDE software. This is available for Windows, Mac and Linux.
Download Arduino IDE
NOTE: This Arduino Clone is based on the CH340 USB chip. Sometimes it is necessary to install the driver for this for Windows or Mac. With Linux this is actually rarely the case.
First try if it works without installing the driver. If there is a COM port available in the Arduino IDE that you can upload to, then it is already fine and nothing needs to be installed.
If necessary, you can download the required driver here:
Download CH340 driver for Windows
Download CH340 driver for Mac
Download CH340 driver for Linux
Disclaimer: Downloading and installing the offered drivers is an extra service from us and entirely at your own risk. We cannot guarantee that the offered drivers are up-to-date. Any malfunctions caused by the use of these drivers are at the risk of the person installing the drivers.
