Mini OLED display yellow/blue 0.96 inch 128x64 I2C (OT824-C65)
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEYou will receive the quote in your mailbox within a few minutes.

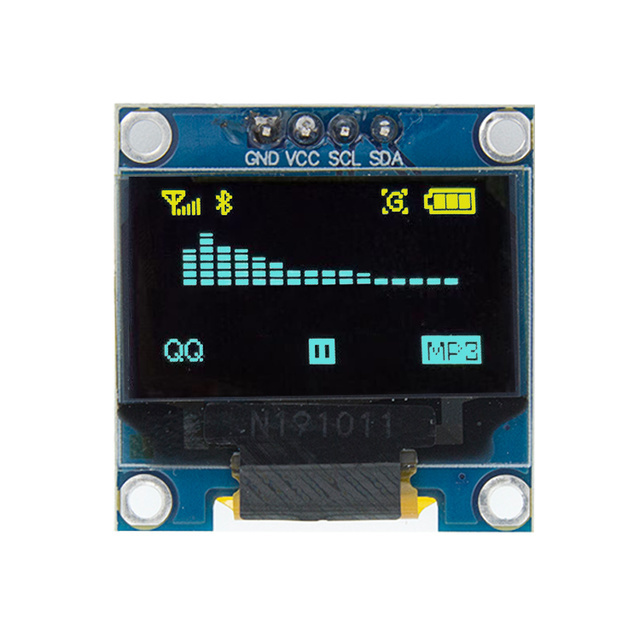

0.96 inch mini 2 color (yellow/blue) OLED screen. Razor sharp image with a resolution of 128x64 pixels.
NOTE: This is NOT a full color OLED screen. Top edge pixels is yellow (16 pixels) and the bottom part is blue (48 pixels).
Works on a power source of 3v-5v. Ideal for Arduino or ESP32 / ESP8266 projects.
The dimensions of this board are only 26.1 x 26.1 x 3.2mm.
There are 2 i2c addresses to select by changing the resistor on the back. Available addresses are: 0x3C (default) and x3D
If you want to control multiple OLED displays or you do not want to solder the SMD, you can also control up to 8x i2C displays with the same address using an i2c multiplexer.
DimensionsLength: 2.61cmWidth: 2.61cmHeight: 0.32cm
