Name: NE555 Frequency Adjustable Pulse Generator Module
Brand: OTRONIC
SKU: OT3701
Price: 1.60 EUR
Availability: InStock
Rating: 5 (3 reviews)

NE555 Frequency Adjustable Pulse Generator Module

Pulse generator module with NE555 for anyone looking for an adjustable square wave source.

SKU: OT3701 Article number: NA535 EAN: 8720618690302 Location: F03.09

€ 1,60 Incl. VAT (€ 1,32 Excl. VAT)

In stock (97)

30-day reflection period

1-year warranty

Ordered on weekdays before 2:00 PM, shipped today

Free returns

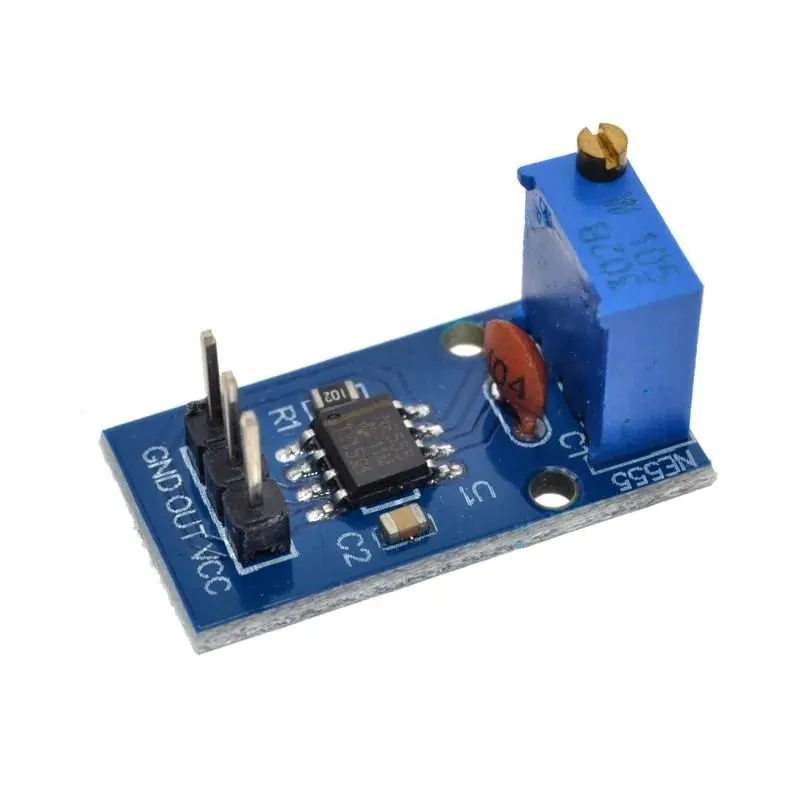

NE555 Frequency Adjustable Pulse Generator Module

Built-in NE555 chip.
A single-channel output, square wave pulse generator module based on the ubiquitous NE555 timer IC.

The module can be powered from a wide voltage range (4.5 to 12V) and will produce a continuous square wave output between 15Hz and 24KHz, which can be set using a built-in multi-turn potentiometer.

Useful for applications where an approximate frequency clock source is required, such as for generating tone generation for stepper motors, etc.

Specifications:
PCB color: blue
Supply voltage: 4.5 to 12V
Supply current: 3mA at 5V Vcc
Min freq (approx.): 15Hz 49% duty cycle at 5V Vcc
Max freq (approx.): 24KHz 89.4% duty cycle at 5V Vcc
Output voltage: 4.5V at 5Vcc / 11.5V at 12Vcc
Size: 29 (mm) x12 (mm)

Dimensions
Length: 2.9cm
Width: 1.2cm
Height: 1.2cm

NE555 chip
Frequency adjustable
4,5-12V power supply
29 x 12 mm

Why choose this product?

Adjustable frequency – Adjustable from 15Hz to 24KHz.
Single-channel output – Outputs a square wave on one output.
Wide power supply range – Works from 4.5 to 12V.
Built-in adjustment – Set with a multi-turn potentiometer.
Suitable for timing – Useful for clock sources and stepper motors.

Specifications

Width	1,2 cm
Output voltage	4.5V
Length	2.9 cm
Supply voltage	4.5 to 12V
Height	1,2 cm
PCB color	blue
Supply current	3mA
Min freq	15Hz
Min duty cycle	49%
Max freq	24KHz
Max duty cycle	89.4%
