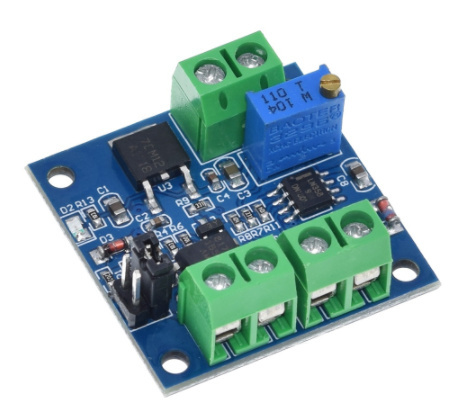

PWM to Voltage converter module 0-10V (OT5077)

This PWM to Voltage Converter Module is designed to convert PWM signals to voltage range between 0-10V, and is suitable for a wide range of applications in industry and electronics projects.
The module has a working voltage range of DC 12V-30V, with a minimum current of more than 100mA. Please note that this is the voltage required for the module to work and is separate from the PWM signal.
The PWM signal frequency range is between 1KHZ-3KHZ, making the module compatible with a wide range of devices and controllers.
The PWM signal input level range can be set to 4.5 to 10V level (for conventional industrial control boards such as MACH3 board and the interface of 5V CPU) or 12 to 24V level (mainly aimed at the conventional PLC interface). With a jumper pin, it is set to 4.5 to 10V level by default.
The conversion range of PWM to voltage is 0%-100%, with a tolerance of 5%. This means you can easily adjust the output voltage between 0-10V by adjusting the PWM duty cycle.
The PWM to Voltage Converter Module is compact and easy to install and use. The module provides flexible options for adjusting the signal level, making it suitable for a wide range of applications, such as motor speed control, LED dimming, and temperature control.
Product Specifications:

Working Voltage Range: DC 12V-30V
Power Requirement: Minimum 100mA
PWM Signal Receiving Frequency Range: 1KHZ-3KHZ
PWM Signal Input Voltage Range: 4.5V to 10V or 12V to 24V (adjustable by jumper)
Voltage Output Range: 0-10V
Conversion Range: 0%-100% PWM conversion to 0-10V voltage
Tolerance: 5%
Potentiometer for calibration PWM signal
Module size: (LxWxH) 33x33x15mm_x005F_x000D_
