Description

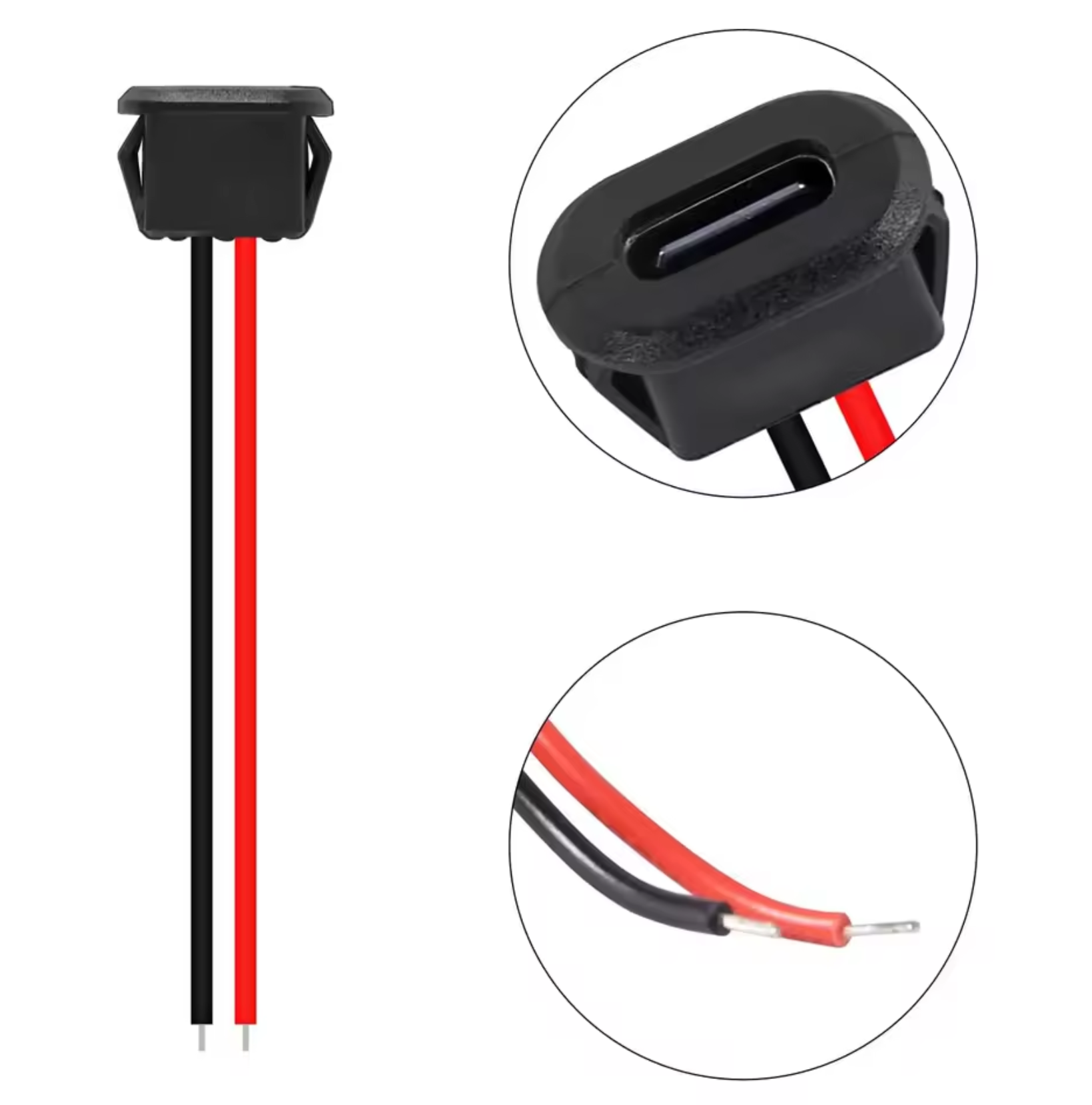

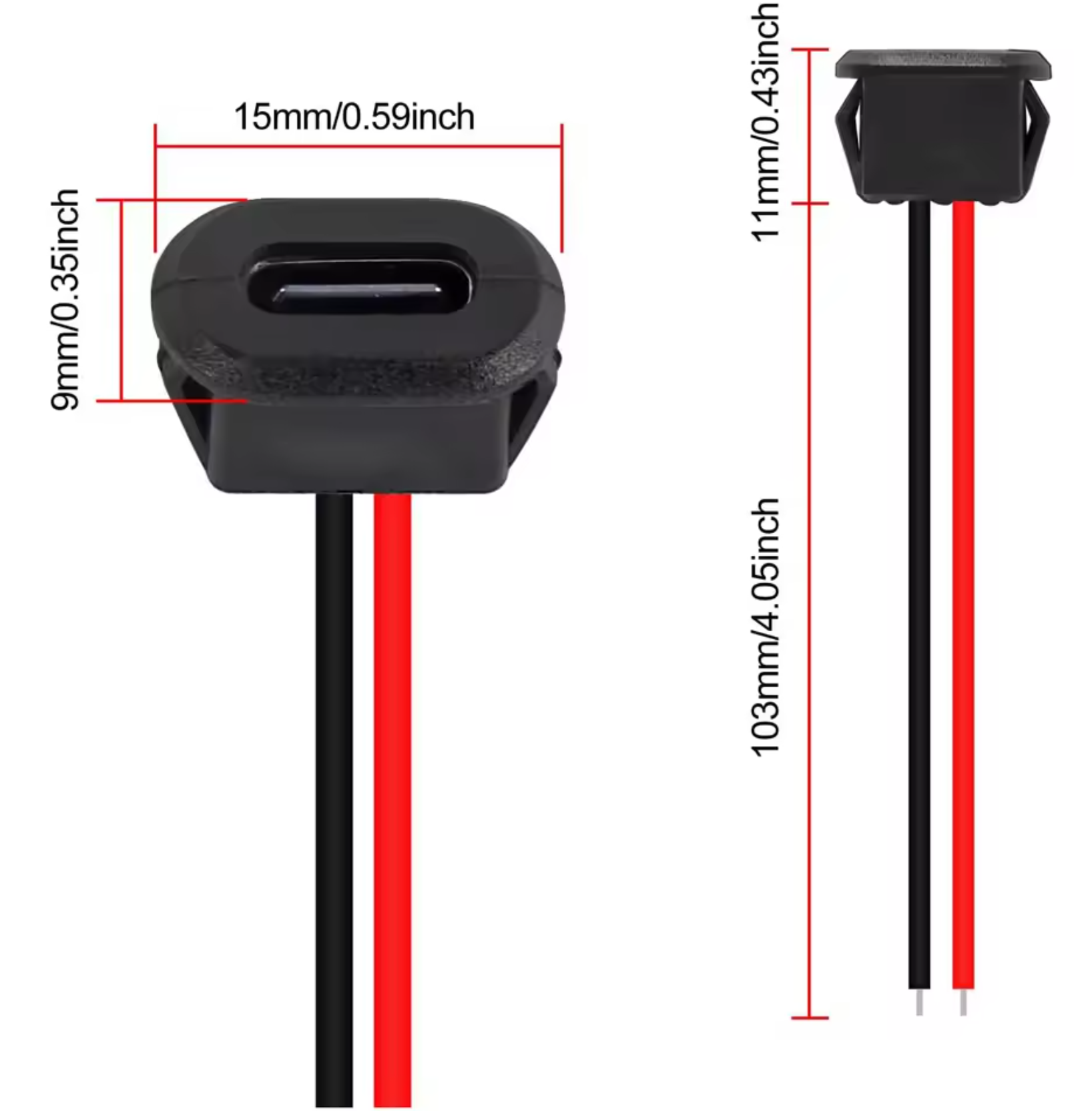

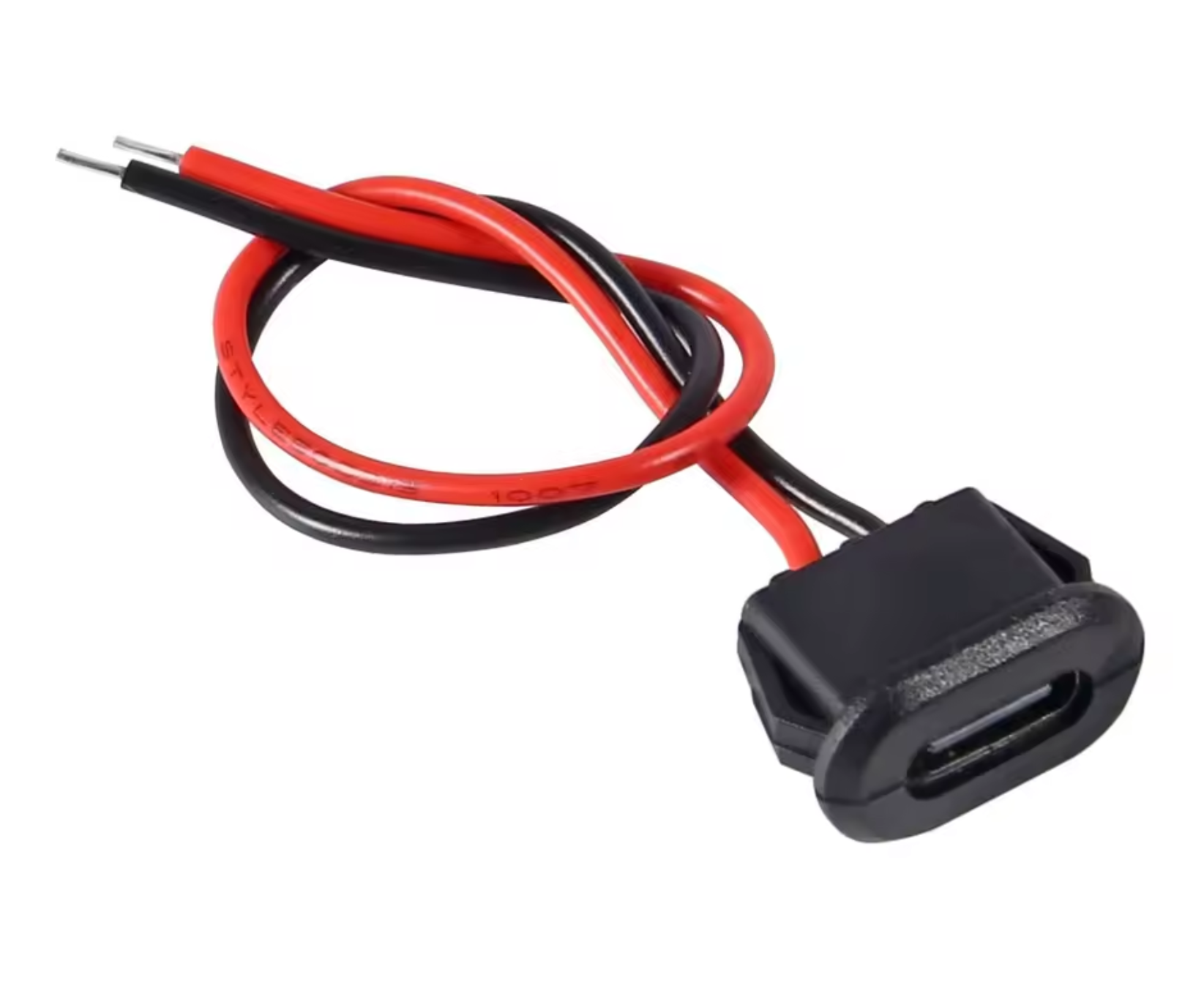

USB-C built-in socket chassis part
This USB-C built-in socket is ideal for neatly and professionally integrating a USB-C connection into your enclosure. The chassis part features a click system and comes with a 10 cm cable in red and black. Suitable for 5V power and charging, without data transfer.
Main features
- Suitable for 5V power and charging
- Click system for easy installation
- 10 cm cable in red (positive) and black (negative)
- Copper alloy contacts with gold plating for optimal conductivity
- Contact resistance less than 30 milliohms
- Insulation resistance greater than 1 megaohm
- Insertion and withdrawal force between 5 and 20N
- Durable: at least 1000 insertions without quality loss
- Rated current: 3A / 5A
- Temperature range: -25°C to +85°C
Applications
This USB-C built-in socket is suitable for various electronic applications, such as:
- PCB boards
- Toys
- Power banks and charging stations
- Clamped batteries
- Desk lamps
- Mobile devices and 3C digital products
- Electronic instruments and security equipment
- Industrial equipment
- Electric toothbrushes
