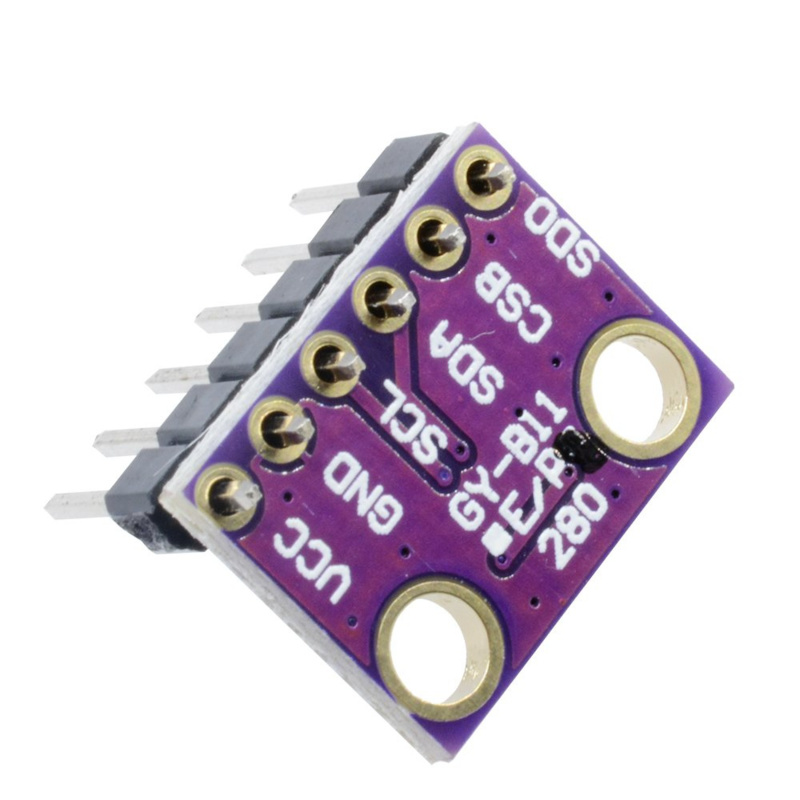

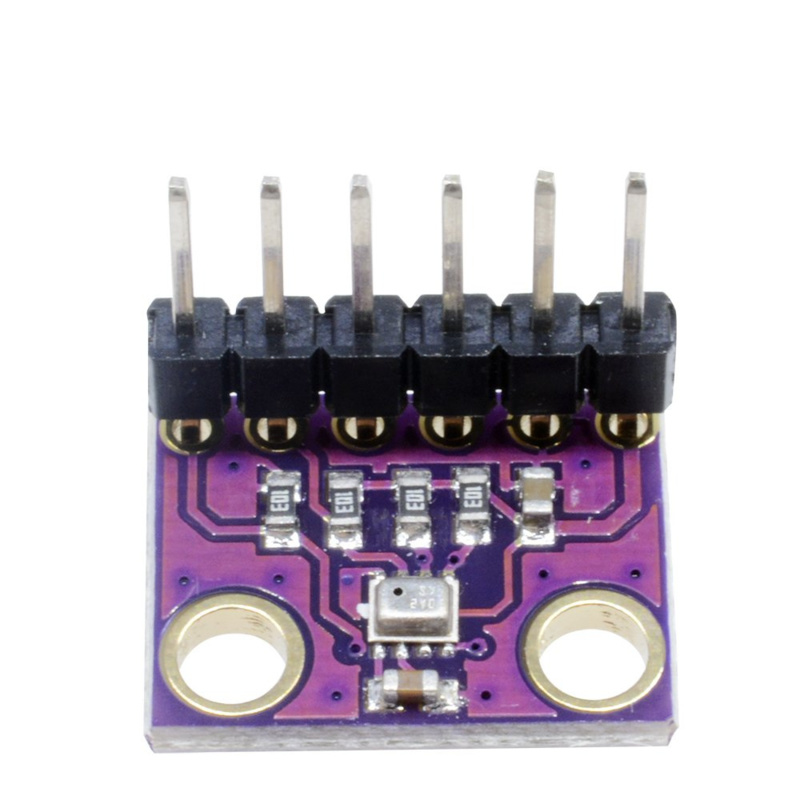

Digital Barometer Pressure Sensor Module BMP280 (OT2313-B26)
Show all:
Sensors,Air Pressure Sensors
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
The BMP280 sensor is an environmental sensor with temperature and barometric pressure. It is an upgrade of the BMP085/BMP180/BMP183. This sensor is perfect for all kinds of weather measurements and can be used with I2C and SPI!
This precision sensor from Bosch is the best low-cost precision sensor solution for measuring barometric pressure with ±1 hPa absolute accuracy and temperature with ±1.0°C accuracy. Because pressure changes with altitude and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy.
This module is very suitable for the ESP32 and ESP8266 boards that operate on 3.3V. The module can only be powered with 3.3VDC. The I2C/SPI also works with 3.3V and you need a level converter when using e.g. a 5V Arduino Uno.
The default I2C address of this module is 0x76. This may need to be changed in the example code/library from 0x77 to 0x76. If you connect the SDO pin to Vcc, the I2C address becomes 0x77.
DimensionsLength: 1.5cmWidth: 1.14cmHeight: 0.24cm
This precision sensor from Bosch is the best low-cost precision sensor solution for measuring barometric pressure with ±1 hPa absolute accuracy and temperature with ±1.0°C accuracy. Because pressure changes with altitude and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy.
This module is very suitable for the ESP32 and ESP8266 boards that operate on 3.3V. The module can only be powered with 3.3VDC. The I2C/SPI also works with 3.3V and you need a level converter when using e.g. a 5V Arduino Uno.
The default I2C address of this module is 0x76. This may need to be changed in the example code/library from 0x77 to 0x76. If you connect the SDO pin to Vcc, the I2C address becomes 0x77.
DimensionsLength: 1.5cmWidth: 1.14cmHeight: 0.24cm
