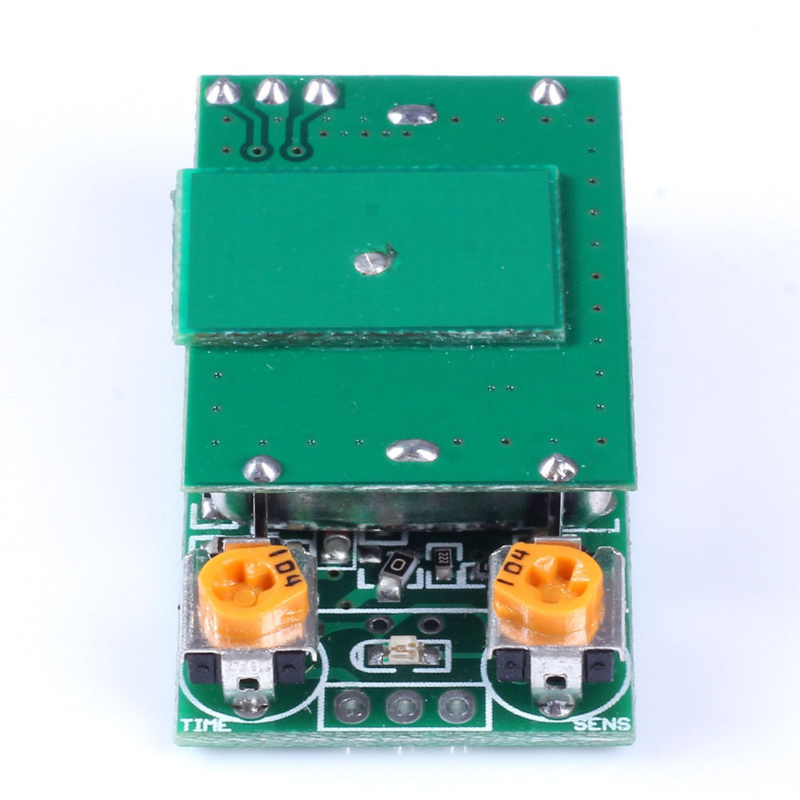

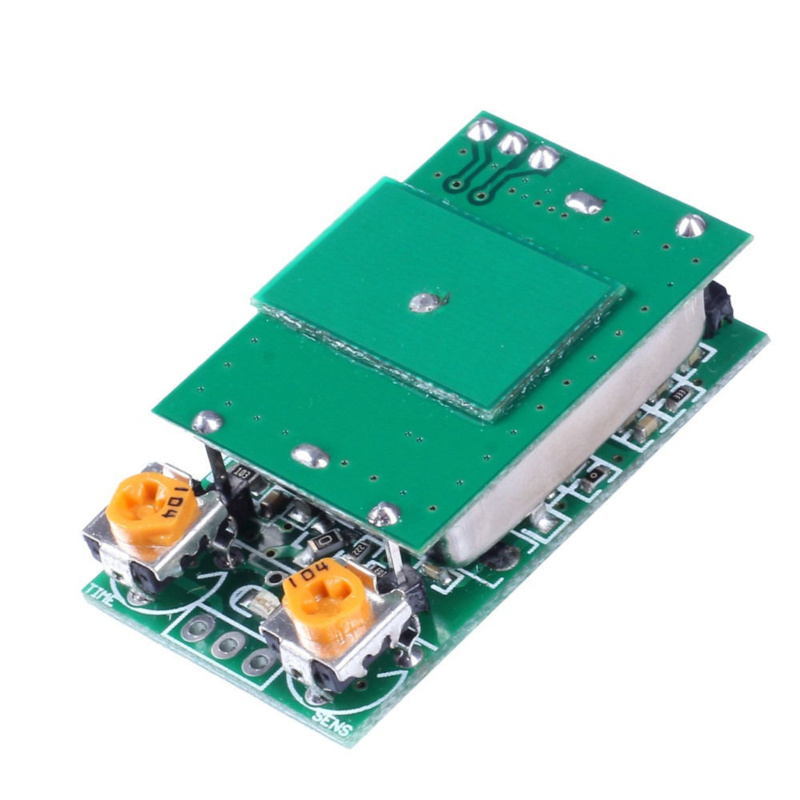

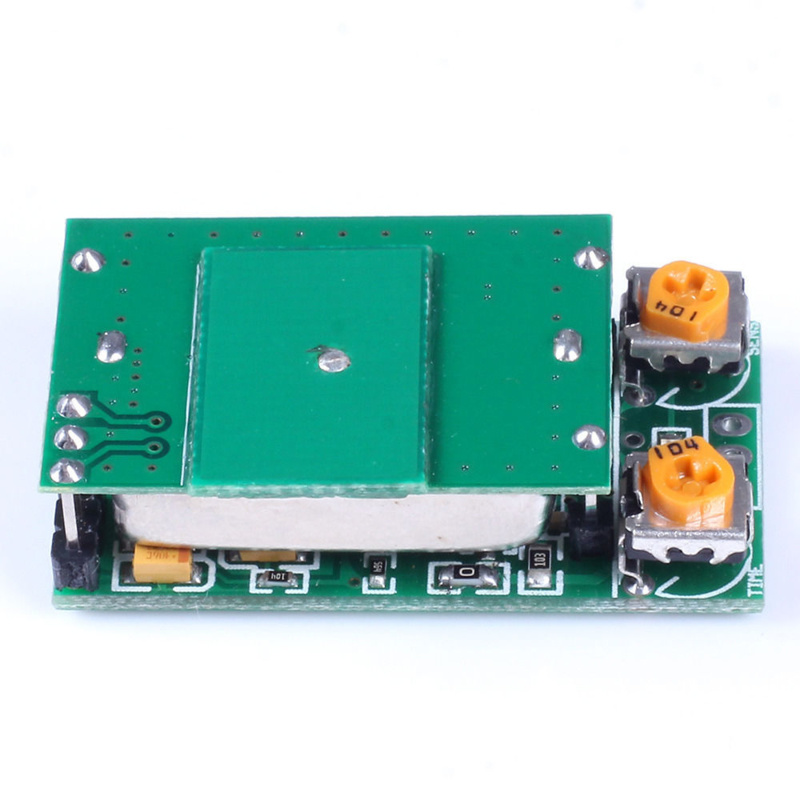

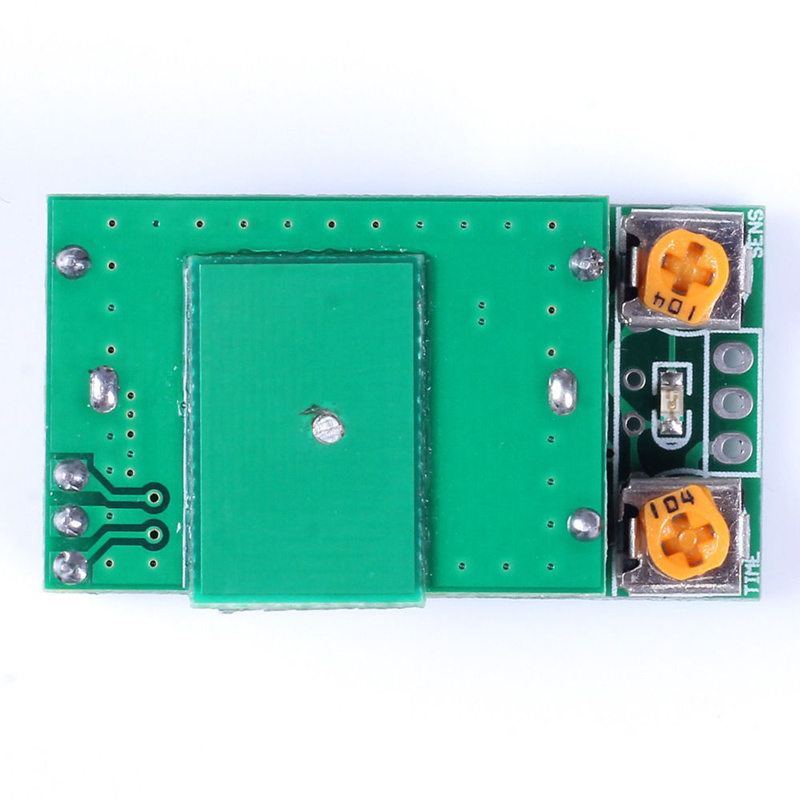

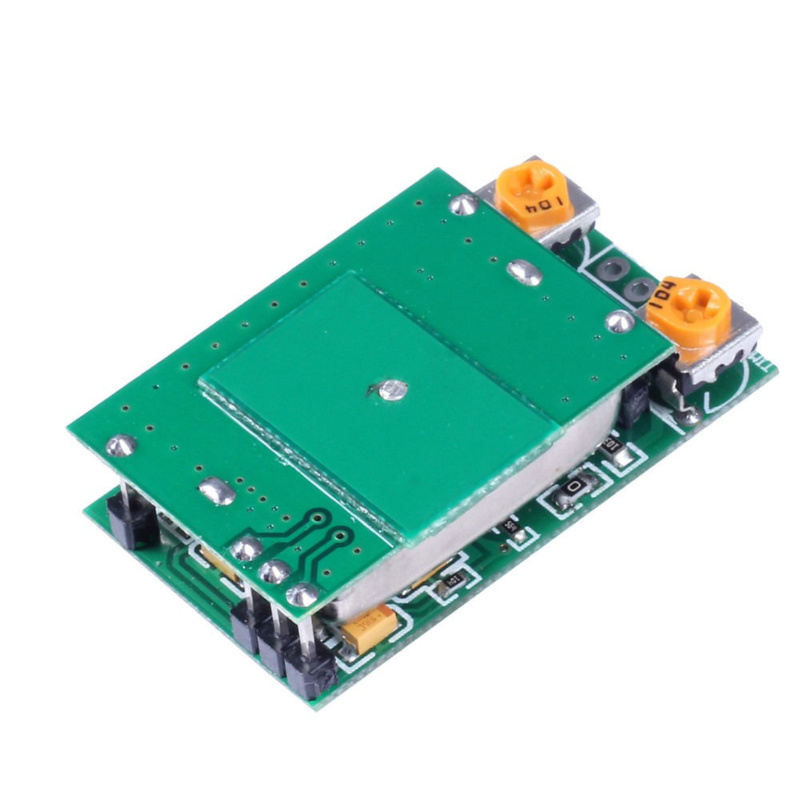

Microwave Radar Motion Sensor (Doppler) - 5.8Ghz HFS-DC06 (OT3500)
Show all:
Sensors,Distance Sensors
Would you like to order large quantities of this product or do you need a quote to order within your organization? Then request a quote.
REQUEST QUOTEThank you for your request.
You will receive the quote in your mailbox within a few minutes.
You will receive the quote in your mailbox within a few minutes.
Ship to all EU countries
Ordered on working days before 3:00 PM = shipped the same day.
30 days cooling-off period
1 jaar garantie
Description
This sensor module is an alternative to PIR sensors that are often used in security systems. This sensor detects movement based on the 'microwave Doppler radar' technique.
Can detect moving people and objects, even through glass and thin walls (Human Presence Detector). The sensor detects changes within the echo.
see the Wiring Diagram and example code here >>>
range: up to 12 meters
applications:
Smart (LED) lighting
Security
Body detection toys
Industrial automation and control
Automatic detection equipment
Battery powered automatic control
Features
ISM Band
Operating voltage: DC 5V,
Current: 30mA
output: high level signal
Installation height: 2-6m
Detection distance 3-20m (adjustable)
Detection angle: Direct forward 360 degrees
Detection time: 2-120s (adjustable)
dimensions 39x22x11mm
VCC connects to positive pole
GND connects to negative pole
Important: Use more than 30mA for this stable voltage module. The performance of this module will minimize if it is placed next to large metal surfaces or in a metal enclosure.
Can detect moving people and objects, even through glass and thin walls (Human Presence Detector). The sensor detects changes within the echo.
see the Wiring Diagram and example code here >>>
range: up to 12 meters
applications:
Smart (LED) lighting
Security
Body detection toys
Industrial automation and control
Automatic detection equipment
Battery powered automatic control
Features
ISM Band
Operating voltage: DC 5V,
Current: 30mA
output: high level signal
Installation height: 2-6m
Detection distance 3-20m (adjustable)
Detection angle: Direct forward 360 degrees
Detection time: 2-120s (adjustable)
dimensions 39x22x11mm
VCC connects to positive pole
GND connects to negative pole
Important: Use more than 30mA for this stable voltage module. The performance of this module will minimize if it is placed next to large metal surfaces or in a metal enclosure.
